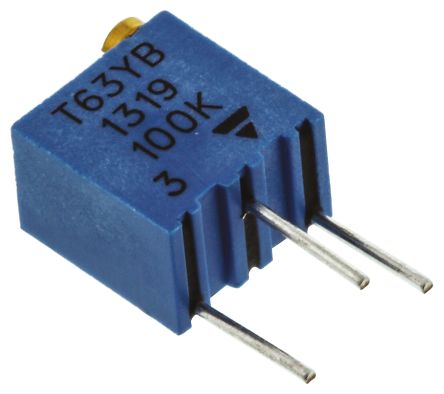

100 kΩ, Through Hole Trimmer Potentiometer, Pin 0.25 W Top Adjust Vishay, T63 - pack size 50 units
100 kΩ, Through Hole Trimmer Potentiometer, Pin 0.25 W Top Adjust Vishay, T63 - pack size 50 units
MPN: T63YB104KT20
RS-ID: SKU:169-3143
Out of stock
Couldn't load pickup availability
Description
MIL-R-22097, CECC 41 100. 6mm 1/4in. 250mW Top Adjust T63YB. Due to their square shape and small size, the multi-turn trimmers of the T63 series are ideally suited for PCB use, enabling high density board mounting with reduced space requirement between cards. Multiturn operation A low contact resistance variation
Technical data
| Characteristic | Value |
|---|---|
| Product Type | Trimmer Potentiometer |
| Maximum Resistance | 100kΩ |
| Mount Type | Through Hole |
| Number of Turns | 14 |
| Packaging | Tube |
| Orientation | Top Adjust |
| Power Rating | 0.25W |
| Series | T63 |
| Termination Style | Pin |
| Automotive Standard | No |
| Tolerance ± | 10% |
| Temperature Coefficient | ±100 ppm/°C |
| Pin Count | 3 |
| Minimum Operating Temperature | -55°C |
| Length | 6.8mm |
| Maximum Operating Temperature | 155°C |
| Shaft Diameter | 1.8mm |
| Maximum Voltage | 250V |
| Diameter | 6.8mm |
| Depth | 5mm |
| Height | 6.8mm |
| Standards/Approvals | IEC 60393-1 |
| Mechanical Rotation | 15Cycles |
| Element Material | Cermet |
Datasheet
Manufacturer
Vishay
Weight
0.004 G
Pack Size
1 tu = 50 units
Base Unit of Measure
PCE
Shipping
Expected availability from RS: 03.06.2026
