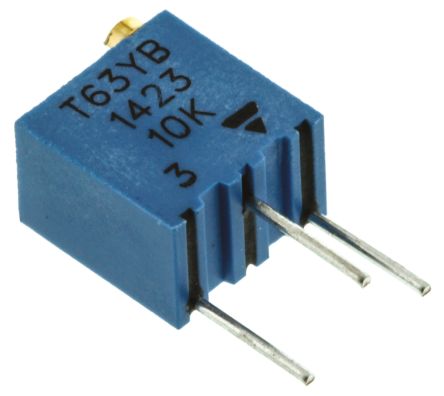

10 kΩ, Through Hole Trimmer Potentiometer, Pin 0.25 W Top Adjust Vishay, T63 - pack size 50 units

10 kΩ, Through Hole Trimmer Potentiometer, Pin 0.25 W Top Adjust Vishay, T63 - pack size 50 units

Regular price €3,73 EUR
Regular price Sale price €3,73 EUR
Sale Sold out
Shipping calculated at checkout. Prices exclude VAT.

MPN: T63YB103KT20

RS-ID: SKU:169-3140

250 in stock

Description

Maximum Resistance = 10k?
Mounting Type = Through Hole
Number of Turns = 14
Orientation = Top Adjust
Power Rating = 0.25W
Series = T63
Termination Style = Pin
Tolerance = ±10%
Temperature Coefficient = ±100ppm/°C
Shaft Diameter = 1.8 mm
Minimum Operating Temperature = -55°C
Maximum Operating Temperature = +155°C

MIL-R-22097, CECC 41 100. 6mm 1/4in. 250mW Top Adjust T63YB. Due to their square shape and small size, the multi-turn trimmers of the T63 series are ideally suited for PCB use, enabling high density board mounting with reduced space requirement between cards. Multiturn operation A low contact resistance variation

Technical data
Characteristic Value
Product Type Trimmer Potentiometer
Maximum Resistance 10kΩ
Mount Type Through Hole
Number of Turns 14
Packaging Tube
Orientation Top Adjust
Power Rating 0.25W
Series T63
Termination Style Pin
Automotive Standard No
Tolerance ± 10%
Temperature Coefficient ±100 ppm/°C
Pin Count 3
Minimum Operating Temperature -55°C
Maximum Operating Temperature 155°C
Maximum Voltage 250V
Length 6.8mm
Shaft Diameter 1.8mm
Standards/Approvals IEC 60393-1
Diameter 6.8mm
Depth 6.8mm
Height 5mm
Element Material Cermet
Mechanical Rotation 15Cycles
Datasheet
Manufacturer

Vishay

Weight

0.74 G

Pack Size

1 tu = 50 units

Base Unit of Measure

PCE

Shipping

2–3 days within Germany / 3–6 days within EU

View full details
