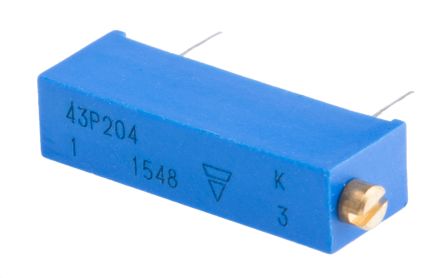

200 kΩ, Through Hole Trimmer Potentiometer, Pin 0.5 W Side Adjust Vishay, 43P - pack size 200 units
200 kΩ, Through Hole Trimmer Potentiometer, Pin 0.5 W Side Adjust Vishay, 43P - pack size 200 units
MPN: M43P204KB40
RS-ID: SKU:169-3028
Out of stock
Couldn't load pickup availability
Description
19mm (3/4in.) 500mW Rectangular End Adjust 43P Series Standard. Unique slider block for excellent setability Multi-finger wiper to minimise CRV Sealed to withstand immersion board washing Moulded body with built-in standoffs Wiper idles at end of travel Panel mounting adaptor available, stock no. ; 855-305 855-305
Technical data
| Characteristic | Value |
|---|---|
| Product Type | Trimmer Potentiometer |
| Maximum Resistance | 200kΩ |
| Mount Type | Through Hole |
| Number of Turns | 20 |
| Orientation | Side Adjust |
| Packaging | Box |
| Power Rating | 0.5W |
| Series | 43P |
| Automotive Standard | No |
| Termination Style | Pin |
| Tolerance ± | 10% |
| Temperature Coefficient | ±100 ppm/°C |
| Pin Count | 3 |
| Minimum Operating Temperature | -55°C |
| Maximum Voltage | 400V |
| Length | 20.57mm |
| Maximum Operating Temperature | 125°C |
| Shaft Diameter | 2.5mm |
| Depth | 4.7mm |
| Height | 6.4mm |
| Standards/Approvals | IEC 60393-1 |
| Element Material | Cermet |
Datasheet
Manufacturer
Vishay
Weight
0.002 G
Pack Size
1 bx = 200 units
Base Unit of Measure
PCE
Shipping
Expected availability from RS: 03.06.2026
