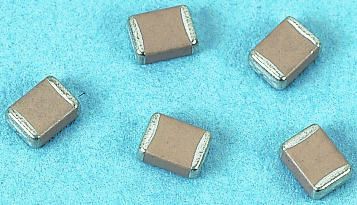

Murata 470 pF Multilayer Ceramic Capacitor, 250V ac, ±10 %, Surface - pack size 1000 units
Murata 470 pF Multilayer Ceramic Capacitor, 250V ac, ±10 %, Surface - pack size 1000 units
MPN: GA352QR7GF471KW01L
RS-ID: SKU:169-2946
Out of stock
Couldn't load pickup availability
Description
Capacitance = 470pF
Voltage = 250V ac
Package/Case = 2211 (5728M)
Mounting Type = Surface Mount
Dielectric = X7R
Tolerance = ±10%
Dimensions = 5.7 x 2.8 x 1.5mm
Length = 5.7mm
Depth = 2.8mm
Height = 1.5mm
Series = GA355
Maximum Operating Temperature = +125°C
Y3 Class Certified Products, IEC60950 Devices only. Capacitors are designed for connecting directly across a mains supply but should NOT be used in positions where failure of a capacitor would expose anybody to electric shock. SEV. GA3xx Series. Surface mount technology capable of operating at high voltage levels due to a new monolithic structure Suitable for reflow soldering, and guaranteed to +125°C Low loss, ideal for high frequency circuits and use as a Y3 - class capacitor in Modem circuits Operating Temperature: -55°C to +125°C
Technical data
| Characteristic | Value |
|---|---|
| Capacitance | 470pF |
| Product Type | Multilayer Ceramic Capacitor |
| Voltage | 250V ac |
| Package/Case | 2211 |
| Construction | Stacked |
| Mount Type | Surface |
| Packaging | 180 mm Dia Reel Embossed |
| Dielectric | X7R |
| Tolerance | ±10 % |
| Automotive Standard | No |
| Minimum Operating Temperature | -55°C |
| Termination Type | Surface Mount |
| Series | GA355 |
| Height | 1.5mm |
| Standards/Approvals | Y2, UL, RoHS, IEC 60384-14 Class Y3, IEC 60384-14 Class Y2, IEC 60384-14 Class X2, IEC 60384-14 Class X1 |
| Width | 2.8mm |
| Length | 5.7mm |
| Maximum Operating Temperature | 125°C |
Datasheet
Manufacturer
Murata
Weight
0.001 G
Pack Size
1 reel = 1000 units
Base Unit of Measure
PCE
Shipping
Expected availability from RS: 08.07.2026
