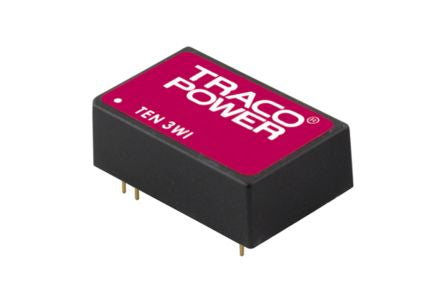

TRACOPOWER TEN 3WI DC/DC Converter, 15V dc/ 100 mA, 36V dc Input, 9V Input 3 W, Through Hole, 85 °C Max Temp -40 °C Min

TRACOPOWER TEN 3WI DC/DC Converter, 15V dc/ 100 mA, 36V dc Input, 9V Input 3 W, Through Hole, 85 °C Max Temp -40 °C Min

Regular price €30,71 EUR
Regular price Sale price €30,71 EUR
Sale Sold out
Shipping calculated at checkout. Prices exclude VAT.

MPN: TEN 3-2423WI

RS-ID: SKU:169-235

Low stock: 9 left

Description

UL 60950-1 , IEC/EN 60950-1. UL, IEC/EN, CSA certificate, CB test report. 3. Traco 3W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEN 3WI Series. The Traco Power TEN 3WI series is a range of isolated, 3 Watt, DC-DC converters in a DIP-24 package with industry-standard footprint. With their high efficiency these regulated converters allows an operating temperature range of –40°C to +70°C. The full SMD design of these DC-DC converters guarantees high reliability. The TEN 3WI series comes with built-in EMI input filter and complies with EN 55022, class A without the need of external components. Ideal applications of these DC-DC converters are in battery operated equipment and distributes power architectures in communication, instrumentation and industrial electronics. Ultra-wide 4:1 input range Full SMD-Design High efficiency up to 84% Extended operating temperature range –40°C to +85°C Excellent load and line regulation Indefinite short-circuit protection I/O isolation 1500 VDC Input filter to meet EN 55022, Class A and FCC, level A without external components Lead free design, fully RoHS compliant

Technical data
Characteristic Value
Output Voltage 1 15V dc
Product Type DC/DC Converter
Maximum Input Voltage 36V dc
Minimum Input Voltage 9V
Output Current 1 100mA
Output Current 2 100mA
Output Voltage 2 -15V dc
Mount Type Through Hole
Input Ratio 4:1
Number of Outputs 2
MTBF 1000000h
Number of Pins 8
Isolation Voltage 1.5kV dc
Package Type DIP
Maximum Output Power 3W
Depth 10.2mm
Series TEN 3WI
Width 20mm
Standards/Approvals No
Length 32mm
Efficiency 80%
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Datasheet
Manufacturer

TRACOPOWER

Weight

16 G

Pack Size

1 unit = 1 units

Base Unit of Measure

PCE
