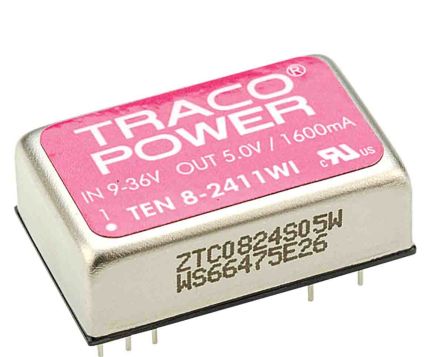

TRACOPOWER TEN 8WI DC/DC Converter, 5V dc/ 1.5 A, 36V dc Input, 18V Input 7.5 W, PCB, 85 °C Max Temp -40 °C Min Temp,

TRACOPOWER TEN 8WI DC/DC Converter, 5V dc/ 1.5 A, 36V dc Input, 18V Input 7.5 W, PCB, 85 °C Max Temp -40 °C Min Temp,

Regular price €45,26 EUR
Regular price Sale price €45,26 EUR
Sale Sold out
Shipping calculated at checkout. Prices exclude VAT.

MPN: TEN 8-2411WI

RS-ID: SKU:169-207

280 in stock

Description

UL/cUL 60950-1, IEC/EN 60950-1, EN 50155. UL/cUL, Raylway. 3. Traco 6.6W ; 8W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEN 8WI Series. The Traco Power TEN 8WI series is a range of isolated, 8 Watt, DC-DC converters in a DIP-24 package with industry-standard footprint. With their high efficiency these regulated converters allows an operating temperature range of -40°C to +85°C. The TEN 8WI series feature excellent EMC characteristics and EN 50155 approval making these high performance DC-DC converters the best choice for applications in railway and transportation systems, as well as wireless networks, telecom/datacom, industry control systems and measurement equipments. DIP-24 metal package Ultra wide 4:1 input voltage range 9–36, 18–75, 43–160 VDC EN 50155 approval for railway applications Thermal shock and vibration resistant according EN 61373 High efficiency up to 88 % No minimum load required Operating temperature range –40°C to +85°C Remote On/Off Under voltage lock-out circuit Shielded metal case with insulated base plate Lead free design, RoHS compliant

Technical data
Characteristic Value
Product Type DC/DC Converter
Output Voltage 1 5V dc
Minimum Input Voltage 18V
Maximum Input Voltage 36V dc
Output Current 1 1.5A
Output Current 2 1.5A
Mount Type PCB
Input Ratio 2:1
Number of Outputs 1
MTBF 700000h
Output Voltage Adjustment Range 18/36 V
Isolation Voltage 1.5kV dc
Number of Pins 24
Package Type DIP
Maximum Output Power 7.5W
Standards/Approvals No
Depth 10.2mm
Width 20.3mm
Series TEN 8WI
Length 32mm
Minimum Operating Temperature -40°C
Efficiency 87%
Maximum Operating Temperature 85°C
Datasheet
Manufacturer

TRACOPOWER

Weight

20 G

Pack Size

1 unit = 1 units

Base Unit of Measure

PCE

Shipping

2–3 days within Germany / 3–6 days within EU
