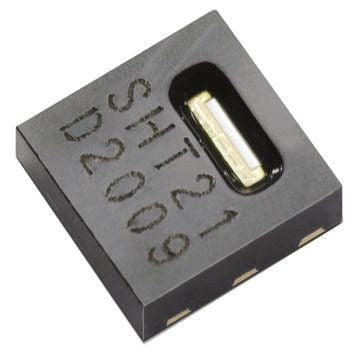

Sensirion SHT2x Series, Digital Output Temperature & Humidity Sensor, Surface Mount, Serial-I2C, ±2 %RH, ±0.3 °C, 6-Pin - pack size 400 units

Sensirion SHT2x Series, Digital Output Temperature & Humidity Sensor, Surface Mount, Serial-I2C, ±2 %RH, ±0.3 °C, 6-Pin - pack size 400 units

€6,45 EUR
€6,45 EUR
Sale Sold out
Shipping calculated at checkout. Prices exclude VAT.

MPN: SHT21

RS-ID: 169-1857

1200 in stock
Description

SHT2x Digital Humidity ; Temperature Sensors. The Sensirion SHT2x series of DFN digital humidity ; temperature sensors are CMOSens® based. They are an industry standard, widely used humidity and temperature sensor. Humidity is measured using a capacitive sensor while temperature is measured using a band-gap sensor. The SHT2x sensors also contain a version 4 silicon chip with an amplifier, A/D converter, OTP memory and a digital interface. They come in a plastic package which leaves the sensor area open, protecting the devices from external impact and providing long-term stability. SHT2x sensors are ideal for both high and low volume applications. The SHT21P has a PWM output and the SHT21S has a PDM output; these can be converted into analogue outputs by the use of suitable low-pass filters. SHT20 - Low cost, SHT21 - Standard, SHT25 - High Accuracy. CMOSens® based technology Fully calibrated I²C serial interface (Not SHT21P/SHT21S) Digital output Low power consumption Long-term stability Supply voltage range: 2.1 to 3.6 V. The following sensors are available:. ; 123-7351 123-7351 · SHT20 · I²C Digital output ; 786-5554 786-5554 · SHT21 · I²C Digital output ; 876-5055 876-5055 · SHT21P · PWM output ; 876-5064 876-5064 · SHT21S · PDM output ; 727-6226 727-6226 · SHT25 · I²C Digital output

Technical data
Characteristic Value
Product Type Temperature & Humidity Sensor
Output Type Digital
Interface Type Serial-I2C
Sub Type Temperature & Humidity Sensor
Accuracy ±2 %RH, ±0.3 °C
Mount Type Surface
Pin Count 6
Maximum Operating Temperature 125°C
Minimum Operating Temperature -40°C
Minimum Supply Voltage 2.1V
Maximum Supply Voltage 3.6V
Package Type DFN
Series SHT2x
Standards/Approvals No
Height 1.1mm
Length 3mm
Automotive Standard No
Datasheet
Manufacturer

Sensirion

Weight

0.002 G

Pack Size

1 reel = 400 units

Base Unit of Measure

PCE

Shipping

2–3 days within Germany / 3–6 days within EU

View full details
