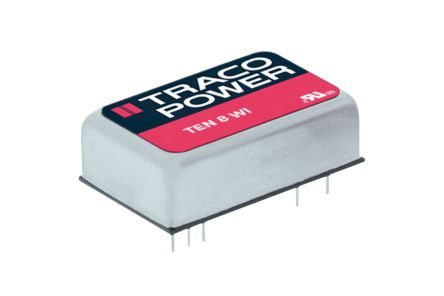

TRACOPOWER TEN 8WI DC/DC Converter, 12V dc/ 666 mA, 36V dc Input, 9V Input 8 W, Through Hole, 85 °C Max Temp -40 °C Min

TRACOPOWER TEN 8WI DC/DC Converter, 12V dc/ 666 mA, 36V dc Input, 9V Input 8 W, Through Hole, 85 °C Max Temp -40 °C Min

€37,38 EUR
€37,38 EUR
Sale Sold out
Shipping calculated at checkout. Prices exclude VAT.

MPN: TEN 8-2412WI

RS-ID: 169-184

Low stock: 4 left
Description

Output Voltage = 12V dc
Input Voltage Range = 9 ? 36 V dc
Power Rating = 8W
Input Voltage Nominal = 24 V dc
Output Current = 666mA
Mounting Type = Through Hole
Isolated = Yes
Number of Outputs = 1
Package = DIP 24
Isolation Voltage = 1.5kV dc
Depth = 10.2mm
Railway Approved = Yes
Load Regulation = ±0.5%
Minimum Temperature = -40°C

UL/cUL 60950-1, IEC/EN 60950-1, EN 50155. UL/cUL, Raylway. 3. Traco 6.6W ; 8W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEN 8WI Series. The Traco Power TEN 8WI series is a range of isolated, 8 Watt, DC-DC converters in a DIP-24 package with industry-standard footprint. With their high efficiency these regulated converters allows an operating temperature range of -40°C to +85°C. The TEN 8WI series feature excellent EMC characteristics and EN 50155 approval making these high performance DC-DC converters the best choice for applications in railway and transportation systems, as well as wireless networks, telecom/datacom, industry control systems and measurement equipments. DIP-24 metal package Ultra wide 4:1 input voltage range 9–36, 18–75, 43–160 VDC EN 50155 approval for railway applications Thermal shock and vibration resistant according EN 61373 High efficiency up to 88 % No minimum load required Operating temperature range –40°C to +85°C Remote On/Off Under voltage lock-out circuit Shielded metal case with insulated base plate Lead free design, RoHS compliant

Technical data
Characteristic Value
Product Type DC/DC Converter
Output Voltage 1 12V dc
Maximum Input Voltage 36V dc
Minimum Input Voltage 9V
Output Current 1 666mA
Mount Type Through Hole
Input Ratio 4:1
MTBF 2800000h
Number of Outputs 1
Output Voltage Adjustment Range -1 to 1 %
Number of Pins 9
Isolation Voltage 1.5kV dc
Package Type DIP-24
Maximum Output Power 8W
Width 20.3mm
Standards/Approvals RoHS
Length 32mm
Depth 10.2mm
Series TEN 8WI
Maximum Operating Temperature 85°C
Minimum Operating Temperature -40°C
Efficiency 86%
Datasheet
Manufacturer

TRACOPOWER

Weight

20 G

Pack Size

1 unit = 1 units

Base Unit of Measure

PCE

Shipping

2–3 days within Germany / 3–6 days within EU
