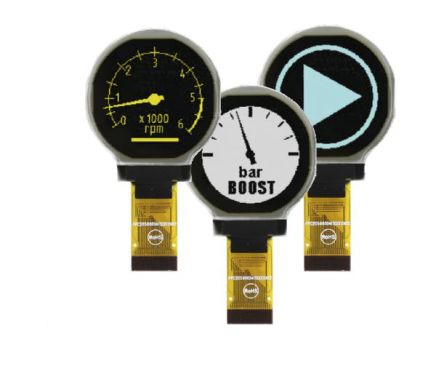

Display Visions 29.97 mm Passive matrix White OLED Display 128 x 128 pixel COB I2C/SPI
Display Visions 29.97 mm Passive matrix White OLED Display 128 x 128 pixel COB I2C/SPI
MPN: EA W128128-XRLW
RS-ID: SKU:169-1835
Out of stock
Couldn't load pickup availability
Description
Diagonal Display Size = 1.18in
Viewing Area Dimensions = 30 x 30mm
Matrix Type = Passive
Display Colours = White
Resolution = 128 x 128pixels
Contrast Ratio = 2000:1
Driver Mounting = COB
Interface Ports = I2C, SPI
Dimensions = 36.8 x 41.23 x 2.05mm
Depth = 2.05mm
Height = 41.23mm
Maximum Operating Temperature = +80°C
Viewing Area Height = 30mm
Technical data
| Characteristic | Value |
|---|---|
| Product Type | OLED Display |
| Diagonal Display Size | 29.97mm |
| Viewing Area Dimensions | 30 x 30 mm |
| Matrix Type | Passive |
| Screen Resolution | 128 x 128 pixel |
| Interface Type | I2C/SPI |
| Contrast Ratio | 2000:1 |
| External Depth | 2.05mm |
| Driver Mounting | COB |
| Minimum Operating Temperature | -40°C |
| External Width | 36.8mm |
| External Height | 41.23mm |
| Maximum Operating Temperature | 80°C |
| Standards/Approvals | No |
| Forward Current | 32mA |
| Forward Voltage | 15V dc |
| Display Colour | White |
Datasheet
Manufacturer
Display Visions
Weight
1 G
Pack Size
1 unit = 1 units
Base Unit of Measure
PCE
Shipping
Expected availability from RS: currently unavailable
