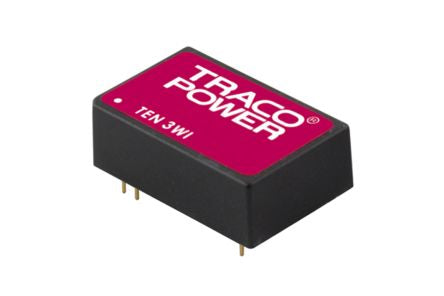

TRACOPOWER TEN 3WI DC/DC Converter, 5V dc/ 600 mA, 36V dc Input, 9V Input 3 W, Through Hole, 85 °C Max Temp -40 °C Min
TRACOPOWER TEN 3WI DC/DC Converter, 5V dc/ 600 mA, 36V dc Input, 9V Input 3 W, Through Hole, 85 °C Max Temp -40 °C Min
MPN: TEN 3-2411WI
RS-ID: SKU:169-140
Low stock: 4 left
Couldn't load pickup availability
Description
UL 60950-1 , IEC/EN 60950-1. UL, IEC/EN, CSA certificate, CB test report. 3. Traco 3W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEN 3WI Series. The Traco Power TEN 3WI series is a range of isolated, 3 Watt, DC-DC converters in a DIP-24 package with industry-standard footprint. With their high efficiency these regulated converters allows an operating temperature range of –40°C to +70°C. The full SMD design of these DC-DC converters guarantees high reliability. The TEN 3WI series comes with built-in EMI input filter and complies with EN 55022, class A without the need of external components. Ideal applications of these DC-DC converters are in battery operated equipment and distributes power architectures in communication, instrumentation and industrial electronics. Ultra-wide 4:1 input range Full SMD-Design High efficiency up to 84% Extended operating temperature range –40°C to +85°C Excellent load and line regulation Indefinite short-circuit protection I/O isolation 1500 VDC Input filter to meet EN 55022, Class A and FCC, level A without external components Lead free design, fully RoHS compliant
Technical data
| Characteristic | Value |
|---|---|
| Output Voltage 1 | 5V dc |
| Product Type | DC/DC Converter |
| Minimum Input Voltage | 9V |
| Maximum Input Voltage | 36V dc |
| Output Current 1 | 600mA |
| Mount Type | Through Hole |
| Input Ratio | 4:1 |
| Number of Outputs | 1 |
| MTBF | 1000000h |
| Output Voltage Adjustment Range | -2 to 2 % |
| Isolation Voltage | 1.5kV dc |
| Number of Pins | 8 |
| Maximum Output Power | 3W |
| Package Type | Surface Mount |
| Depth | 10.2mm |
| Series | TEN 3WI |
| Width | 20mm |
| Standards/Approvals | No |
| Length | 32mm |
| Efficiency | 79% |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
Datasheet
Manufacturer
TRACOPOWER
Weight
17 G
Pack Size
1 unit = 1 units
Base Unit of Measure
PCE
