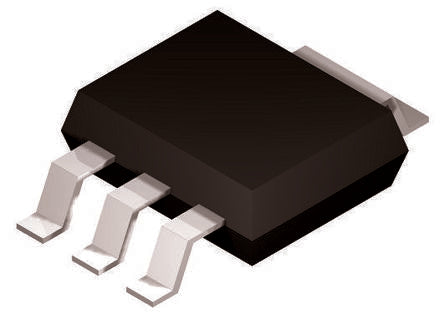

Diodes Inc Transistor, -1 A PNP, -30 V, 4-Pin SOT-223 - pack size 1000 units

Diodes Inc Transistor, -1 A PNP, -30 V, 4-Pin SOT-223 - pack size 1000 units

Regular price €0,34 EUR
Regular price Sale price €0,34 EUR
Sale Sold out
Shipping calculated at checkout. Prices exclude VAT.

MPN: FZT549TA

RS-ID: SKU:169-0700

Out of stock

Description

Transistor Type = PNP
Maximum DC Collector Current = -1 A
Maximum Collector Emitter Voltage = -30 V
Package Type = SOT-223 (SC-73)
Mounting Type = Surface Mount
Maximum Power Dissipation = 2 W
Minimum DC Current Gain = 100
Transistor Configuration = Single
Maximum Collector Base Voltage = -35 V
Maximum Emitter Base Voltage = -5 V
Maximum Operating Frequency = 100 MHz
Pin Count = 3 + Tab
Number of Elements per Chip = 1
Maximum Operating Temperature = +150 °Cmm

General Purpose PNP Transistors, Up to 1.5A, Diodes Inc

Technical data
Characteristic Value
Product Type Transistor
Maximum DC Collector Current Idc -1A
Maximum Collector Emitter Voltage Vceo -30V
Package Type SOT-223
Mount Type Surface
Transistor Configuration Single
Maximum Collector Base Voltage VCBO -35V
Maximum Emitter Base Voltage VEBO -5V
Maximum Transition Frequency ft 100MHz
Transistor Polarity PNP
Minimum Operating Temperature -55°C
Maximum Power Dissipation Pd 2W
Minimum DC Current Gain hFE 30
Pin Count 4
Maximum Operating Temperature 150°C
Standards/Approvals No
Series FZT549
Length 6.55mm
Height 1.65mm
Automotive Standard AEC-Q101
Datasheet
Manufacturer

DiodesZetex

Weight

0.001 G

Pack Size

1 reel = 1000 units

Base Unit of Measure

PCE

Shipping

Expected availability from RS: 09.12.2026
