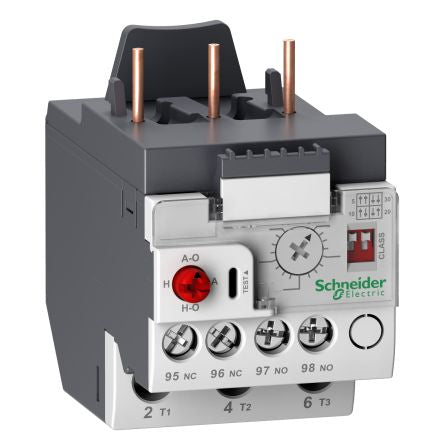

Schneider Electric, TeSys LRD Thermal Overload Relay 1 NO/1 NC, 32A, 6.4 A Contact Rating, 300 mW, 690V 3P

Schneider Electric, TeSys LRD Thermal Overload Relay 1 NO/1 NC, 32A, 6.4 A Contact Rating, 300 mW, 690V 3P

€206,86 EUR
€206,86 EUR
Sale Sold out
Shipping calculated at checkout. Prices exclude VAT.

MPN: LR9D32

RS-ID: 130-1037

Low stock: 3 left
Description

LR9D Electronic Thermal Overcurrent Relays. Professional range of Schneider Electric thermal overload relays from the LR9D series. The thermal overload relays are designed for direct mounting to contactors. Due to the compact size of the thermal overload relays, space is never an issue. All the thermal overload relay models are highly reliable and excellent quality. Typical application includes pumping, material working, material handling, packaging and HVAC. Test Button Reset Button Reset Mode Selector Trip Indicator IP20 rated on front panel Easily coupled with TeSys N to form compact NEMA starters. Self-powered Ambient insensitivity Selectable trip class (5, 10, 20 and 30)

Technical data
Characteristic Value
Product Type Thermal Overload Relay
Relay Contact Current 32, 6.4A
Series TeSys LRD
Mount Type Under Contactor Mount
Power Rating 300mW
Pole and Throw Configuration 3P
Terminal Type Screw Clamp
Normal State Configuration 1 NO/1 NC
Reset Method Automatic & Manual
IP Rating IP20
Width 79.9mm
Minimum Operating Temperature -25°C
Number of Auxiliary Contacts 2
Adjustable Current Range 6.4 to 32 A
Length 45mm
Maximum Operating Temperature 70°C
Contact Voltage 690V
Standards/Approvals UL 60947-5-1, UL 60947-4-1, GB/T 14048.5, GB/T 14048.4, EN/IEC 60947-5-1, EN/IEC 60947-4-1, CSA C22.2 No 60947-5-1, CSA C22.2 No 60947-4-1
Depth 72.5mm
Supply Voltage 690V
Control Voltage 690V
Datasheet
Manufacturer

Schneider Electric

Weight

216 G

Pack Size

1 unit = 1 units

Base Unit of Measure

PCE

Shipping

2–3 days within Germany / 3–6 days within EU
