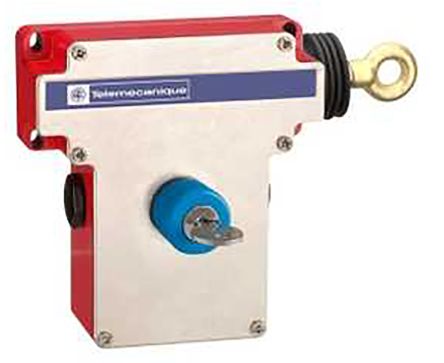

Telemecanique Sensors XY2CE Rope Pull Switch 229 mm, 1 NO/1 NC

Telemecanique Sensors XY2CE Rope Pull Switch 229 mm, 1 NO/1 NC

€823,00 EUR
€823,00 EUR
Sale Sold out
Shipping calculated at checkout. Prices exclude VAT.

MPN: XY2CE1A450

RS-ID: 130-0885

Out of stock
Description

EN/ISO 13850:2006. The XY2 CB switch must not be used if the installation requires that the trip wire be angled but the XY2 CE switch can. In this case, the total sum of the angles through which the trip wire bends must not exceed 180°. Telemecanique XY2CE ; XY2CB Emergency Stop Rope Pull Switches. These emergency stop trip wire switches are designed to reduce the risk of injury to persons and damage either to machines or work in progress. They can be tripped by a single human action when a normal emergency stop function is not available and will also trip in the event of the trip wire breaking. Switches incorporate positive opening operation contacts, the tripping of the switch being made with positive action The switch latches in the tripped position (N/C safety contact(s) open). The function of the N/O contact is purely for signalling Incorporates a reset button, which re-closes the safety contact(s), restarting of the machine must only be achieved by manual operation of a control device within the machine start circuit, remote to the trip wire switch Recommended distance between cable supports is 15m (for model XY2-CB30 a distance of 20m is recommended) The XY2 CE1A296 comes with a pilot light (direct supply)

Technical data
Characteristic Value
Product Type Rope Pull Switch
Contact Configuration 1 NO/1 NC
IP Rating IP66
Number of Cable Entries 3
Series XY2CE
E-Stop Button Yes
Contact DC Voltage 250V dc
Contact Current 3A
Contact AC Voltage 240V ac
Minimum Operating Temperature -25°C
Reset Button Yes
Maximum Operating Temperature 70°C
Length 229mm
Depth 142mm
Standards/Approvals UL 508, EAC, CSA, CCC, CSA C 22-2, EN/IEC 60947-5-5, UL (NISD)
Width 105mm
Housing Material Stainless Steel
Hazardous Area Certification ATEX
Conduit Entry M20
Mechanical Life 60000Cycles
Datasheet
Manufacturer

Telemecanique Sensors

Weight

1.594 KG

Pack Size

1 unit = 1 units

Base Unit of Measure

PCE

Shipping

Expected availability from RS: 15.07.2026
