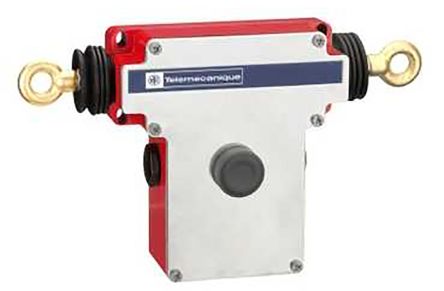

Telemecanique Sensors XY2CE Rope Pull Switch 285 mm, 2 NO/2 NC

Telemecanique Sensors XY2CE Rope Pull Switch 285 mm, 2 NO/2 NC

Regular price €742,12 EUR
Regular price Sale price €742,12 EUR
Sale Sold out
Shipping calculated at checkout. Prices exclude VAT.

MPN: XY2CEDA190

RS-ID: SKU:130-0874

Low stock: 2 left

Description

Telemecanique XY2CED Emergency Stop Dual Rope Pull Switches. Telemecanique XY2CED emergency stop dual rope pull switches are designed to reduce the risk of injury to persons and damage either to machines or work in progress. These dual rope pull switches feature double anchor points and can support up to 2 x 100 m with supports and pulleys. They can be tripped by a single human action when a normal emergency stop function is not available and will also trip in the event of the tripwire breaking. Features and Benefits. Switches incorporate positive opening operation contacts, the tripping of the switch being made with positive action The switch latches in the tripped position (N/C safety contact(s) open). The function of the N/O contact is purely for signalling Incorporates a reset button, which re-closes the safety contact(s), restarting of the machine must only be achieved by manual operation of a control device within the machine start circuit, remote to the trip wire switch Recommended distance between cable supports is 15m

Technical data
Characteristic Value
Product Type Rope Pull Switch
Contact Configuration 2 NO/2 NC
IP Rating IP66
Number of Cable Entries 3
Series XY2CE
E-Stop Button Yes
Contact Current 3A
Contact AC Voltage 240V ac
Minimum Operating Temperature -25°C
Contact DC Voltage 250V dc
Reset Button Yes
Maximum Operating Temperature 70°C
Standards/Approvals CCC, UL (NISD), CSA, EAC, EN/IEC 60947-5-5, UL 508, CSA C 22-2
Width 106mm
Depth 142mm
Length 285mm
Housing Material Stainless Steel
Hazardous Area Certification ATEX
Mechanical Life 60000Cycles
Conduit Entry M20
Datasheet
Manufacturer

Telemecanique Sensors

Weight

1.95 KG

Pack Size

1 unit = 1 units

Base Unit of Measure

PCE

Shipping

2–3 days within Germany / 3–6 days within EU

View full details
