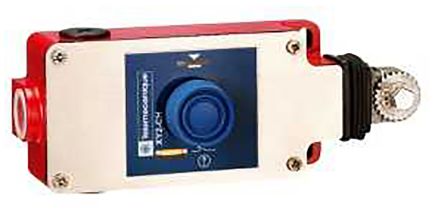

Telemecanique Sensors XY2CH Rope Pull Switch 68 mm
Telemecanique Sensors XY2CH Rope Pull Switch 68 mm
MPN: XY2CH13290H29
RS-ID: SKU:130-0872
14 in stock
Couldn't load pickup availability
Description
IP Rating = IP65
Length = 68mm
Width = 95mm
Housing Material = Stainless Steel
Maximum AC Voltage = 240V
Telemecanique Sensors Emergency Stop Rope Pull SwitchThe Telemecanique Sensors XY2-CH-series emergency stop rope pull switch has a 1NO/2NC contact configuration. It has Zamak housing and has a straight mount orientation. The maximum AC and DC voltage is 240VAC and 250VDC respectively and the current rating of the switch is 3A and 270mA for AC and DC respectively. This switch has a rope span of 30m and rope tension indicator type. Note: Manufacturer part numbers with the suffix H29 are the ISO M20 threaded cable entry version.Features and BenefitsSize of cable entry is ISO M20 For machine tools, conveyers and handling applications Recommended distance between cable supports is 5m Built-in turnbuckle accessory Pushbutton reset Water and dust tight enclosure Surface mountApplicationsConveyor systems Packaging Textiles Transfer machines Presses Woodworking equipment Paint lines Test laboratoriesCertificationsUL approved CCN certified CSA certified CE certified IP65 rated
Technical data
| Characteristic | Value |
|---|---|
| Product Type | Rope Pull Switch |
| IP Rating | IP65 |
| Series | XY2CH |
| Contact DC Voltage | 250V dc |
| Contact AC Voltage | 240V ac |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | 70°C |
| Width | 95mm |
| Housing Material | Stainless Steel |
| Depth | 201mm |
| Standards/Approvals | EN/IEC 60947-5-5, UL 508, EAC, CSA C 22-2, UL (NISD), CCC |
| Length | 68mm |
| Hazardous Area Certification | No |
| Conduit Entry | M20 |
Datasheet
Manufacturer
Telemecanique Sensors
Weight
1.008 KG
Pack Size
1 unit = 1 units
Base Unit of Measure
PCE
