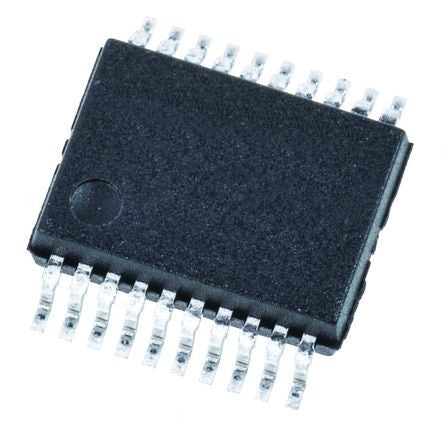

Texas Instruments 8 12 bit- ADC 200 ksps, 20-Pin SSOP - pack size 50 units
Texas Instruments 8 12 bit- ADC 200 ksps, 20-Pin SSOP - pack size 50 units
MPN: ADS7844E
RS-ID: SKU:100-3821
Out of stock
Couldn't load pickup availability
Description
Number of ADCs = 8
Resolution = 12-bit
Pin Count = 20
Integral Nonlinearity Error = ±2LSB
Typical Single Supply Voltage = 5 V
Dimensions = 8.75 x 4 x 1.5mm
Analogue to Digital Converters 12 Bit, Multi-Channel ( ;=10MSPS), Texas Instruments. A range of 12-bit Analogue to Digital Converters (ADCs) with conversion speeds of up to 10 MSPS from Texas Instruments. The range includes both Parallel and Serial interface types and covers various ADC architectures including SAR, Pipelined and Delta-Sigma types.
Technical data
| Characteristic | Value |
|---|---|
| Product Type | ADC |
| Architecture | SAR |
| Number of ADCs | 8 |
| Resolution | 12 bit |
| Sampling Rate | 200ksps |
| Mount Type | Surface |
| Input Type | Voltage |
| Package Type | SSOP |
| Pin Count | 20 |
| Interface Type | SPI |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Standards/Approvals | No |
| Series | ADS7844 |
| Maximum Supply Voltage | 5.25V |
| Length | 8.75mm |
| Height | 1.75mm |
| Minimum Supply Voltage | 5V |
| Automotive Standard | No |
Datasheet
Manufacturer
Texas Instruments
Weight
1 G
Pack Size
1 tu = 50 units
Base Unit of Measure
PCE
Shipping
Expected availability from RS: currently unavailable
