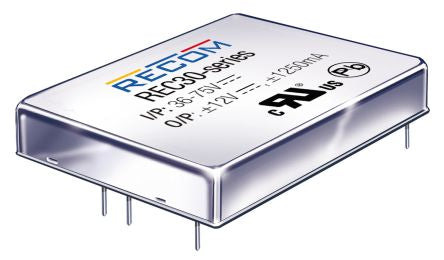

Recom REC30 DC/DC Converter, 12V dc/ 2.5 A, 24V dc Input, 18V Input 30 W, Through Hole, 85 °C Max Temp -40 °C Min Temp,
Recom REC30 DC/DC Converter, 12V dc/ 2.5 A, 24V dc Input, 18V Input 30 W, Through Hole, 85 °C Max Temp -40 °C Min Temp,
MPN: REC30-2412S
RS-ID: SKU:100-2648
Low stock: 4 left
Couldn't load pickup availability
Description
IEC EN60950-01, UL60950, CSA C22.2 No.60950 ; EN55022 Certified. Recom REC30 Series Isolated DC-DC Converter. Recom REC30 series have been designed for use within higher power industrial applications. Boasting both single and dual regulated output functionality within a compact 2" x 1" package. The REC30 series also comes equipped with remote on/off control as standard to provide flexibility within applications. Another benefit of the REC20 series is track loss voltage compensation within the higher current output variants of the range. Features and Benefits. •Highly efficient range of DC-DC converters, boasting up to 90.5% efficiency. •External ON / OFF control for application flexibility. •Isolated to 1.6 k V dc. •Continuous short circuit protection. •6-side shielding.
Technical data
| Characteristic | Value |
|---|---|
| Product Type | DC/DC Converter |
| Output Voltage 1 | 12V dc |
| Maximum Input Voltage | 24V dc |
| Minimum Input Voltage | 18V |
| Output Current 1 | 2.5A |
| Mount Type | Through Hole |
| Input Ratio | 2:1 |
| Number of Outputs | 1 |
| MTBF | 529000h |
| Ripple and Noise | 100mV Pk-Pk |
| Output Voltage Adjustment Range | 10 % |
| Number of Pins | 8 |
| Isolation Voltage | 1.6kV dc |
| Maximum Output Power | 30W |
| Package Type | Tube |
| Standards/Approvals | EN60950, EN55022, EN, cULus, CSA, CAN, IEC60950, IEC, IECEE CB Scheme, EN61000-4-8, EN61000-4-6, REACH, UL, EN61000-4-5, EN61000-4-4, UL60950, EN61000-4-3, EN61000-4-2 |
| Length | 50.8mm |
| Depth | 10.2mm |
| Weight | 48g |
| Series | REC30 |
| Width | 40.6mm |
| Efficiency | 90% |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
Datasheet
Manufacturer
Recom
Weight
5 G
Pack Size
1 unit = 1 units
Base Unit of Measure
PCE
Shipping
2–3 days within Germany / 3–6 days within EU
