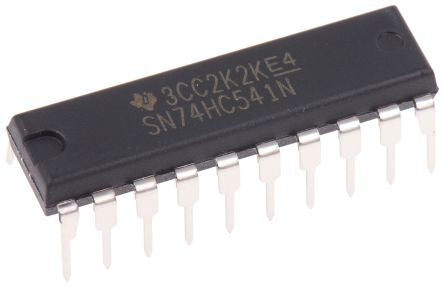

Texas Instruments 8-Channel Buffer & Line Driver, 3 State, Non-Inverting, 20-Pin PDIP - pack size 20 units

Texas Instruments 8-Channel Buffer & Line Driver, 3 State, Non-Inverting, 20-Pin PDIP - pack size 20 units

Regular price €1,04 EUR
Regular price Sale price €1,04 EUR
Sale Sold out
Shipping calculated at checkout. Prices exclude VAT.

MPN: SN74HC541N

RS-ID: SKU:100-0762

120 in stock

Description

74HC Family Inverters ; Buffers, Texas Instruments. Texas Instruments range of Inverters and Buffers from the 74HC Family of CMOS Logic ICs. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits. High-Speed CMOS Logic Operating Voltage: 2 to 6 V Compatibility: Input CMOS, Output CMOS

Technical data
Characteristic Value
Logic Family HC
Product Type Buffer & Line Driver
Logic Function Buffer & Line Driver
IC Type Buffer & Line Driver IC
Number of Channels 8
Input Type Single Ended
Output Type 3 State
Polarity Non-Inverting
Mount Type Through Hole
Package Type PDIP
Minimum Supply Voltage 2V
Pin Count 20
Maximum High Level Output Current -7.8mA
Maximum Supply Voltage 6V
Minimum Operating Temperature -45°C
Maximum Propagation Delay Time @ CL 10ns
Maximum Low Level Output Current 7.8mA
Maximum Operating Temperature 85°C
Standards/Approvals No
Series SN74HC541
Height 5.08mm
Length 26.92mm
Supply Current 80μA
Automotive Standard No
Datasheet
Manufacturer

Texas Instruments

Weight

2.2 G

Pack Size

1 tu = 20 units

Base Unit of Measure

PCE

Shipping

2–3 days within Germany / 3–6 days within EU
