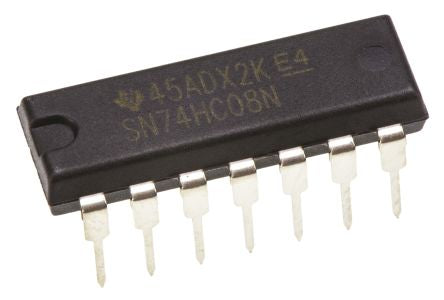

Texas Instruments, 4 2-Input AND Logic Gate, 14-Pin PDIP - pack size 25 units

Texas Instruments, 4 2-Input AND Logic Gate, 14-Pin PDIP - pack size 25 units

Regular price €1,31 EUR
Regular price Sale price €1,31 EUR
Sale Sold out
Shipping calculated at checkout. Prices exclude VAT.

MPN: SN74HC08N

RS-ID: SKU:100-0760

425 in stock

Description

74HC Family Logic Gates, Texas Instruments. Texas Instruments range of standard Logic Gates from the 74HC Family of CMOS Logic ICs. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits. High-Speed CMOS Logic Operating Voltage: 2 to 6 V Compatibility: Input CMOS, Output CMOS

Technical data
Characteristic Value
Logic Function AND
Product Type Logic Gate
Mount Type Through Hole
Number of Elements 4
Number of Inputs per Gate 2
Schmitt Trigger Input No
Package Type PDIP
Pin Count 14
Logic Family HC
Input Type CMOS
Maximum Propagation Delay Time @ CL 24ns
Maximum High Level Output Current -5.2mA
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Maximum Supply Voltage 6V
Standards/Approvals No
Length 19.3mm
Series SN74
Height 4.57mm
Minimum Supply Voltage 2V
Maximum Low Level Output Current 5.2mA
Output Type Push Pull
Automotive Standard No
Manufacturer

Texas Instruments

Weight

2 G

Pack Size

1 tu = 25 units

Base Unit of Measure

PCE

Shipping

2–3 days within Germany / 3–6 days within EU
