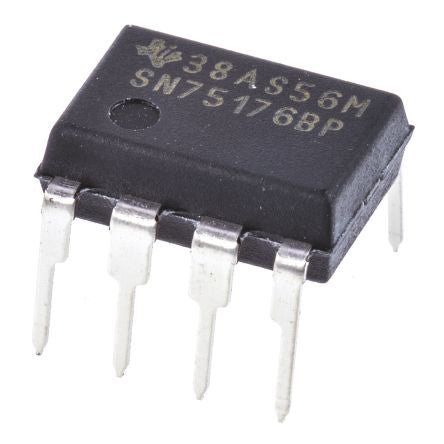

Texas Instruments SN75176BP Bus Transceiver Inverting Differential, 8-Pin SOIC - pack size 50 units
Texas Instruments SN75176BP Bus Transceiver Inverting Differential, 8-Pin SOIC - pack size 50 units
MPN: SN75176BP
RS-ID: SKU:100-0738
750 in stock
Couldn't load pickup availability
Description
Logic Function = Bus Transceiver
Mounting Type = Through Hole
Package Type = DIP
Pin Count = 8
Dimensions = 9.81 x 6.35 x 4.57mm
RS-485 Line Drivers and Receivers, High Speed, Texas Instruments. A range of High Speed RS-485 Line Drivers, Receivers and Transceivers from Texas Instruments with data rates of 10 Mbit/s or over.
Technical data
| Characteristic | Value |
|---|---|
| Product Type | Bus Transceiver |
| Logic Family | Transceiver |
| Logic Function | Bus Transceiver |
| Polarity | Inverting |
| Mount Type | Through Hole |
| Package Type | SOIC |
| Pin Count | 8 |
| Minimum Supply Voltage | 4.75V |
| Input Level | CMOS |
| Maximum Supply Voltage | 5.25V |
| Output Level | Differential |
| Minimum Operating Temperature | 0°C |
| Maximum Propagation Delay Time @ CL | 35ns |
| Maximum Operating Temperature | 70°C |
| Maximum High Level Output Current | -60mA |
| Height | 4.57mm |
| Length | 9.81mm |
| Standards/Approvals | No |
| Series | SN75176B |
| Maximum Low Level Output Current | 60mA |
| Automotive Standard | No |
| Output Type | 3 State |
Manufacturer
Texas Instruments
Weight
1.08 G
Pack Size
1 tu = 50 units
Base Unit of Measure
PCE
Shipping
2–3 days within Germany / 3–6 days within EU
