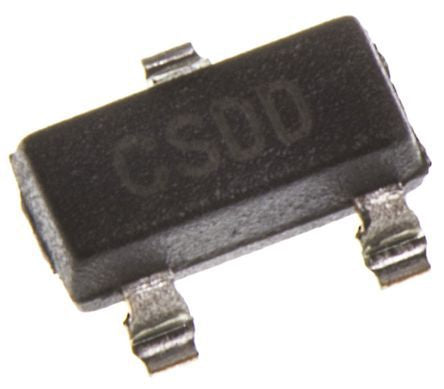

Renesas Electronics Fixed Series Precision Voltage Reference ±0.03 % 3-Pin SOT-23, ISL60002BAH333Z-T7A
Renesas Electronics Fixed Series Precision Voltage Reference ±0.03 % 3-Pin SOT-23, ISL60002BAH333Z-T7A
MPN: ISL60002BAH333Z-T7A
RS-ID: SKU:100-0664
124 in stock
Couldn't load pickup availability
Description
Nominal Voltage = 3.3V
Package Type = SOT-23
Reference Type = Fixed
Initial Accuracy = ±0.03 %
Mounting Type = Surface Mount
Topology = Series
Maximum Input Voltage = 5.5 V
Maximum Output Voltage = 3.3 V
Pin Count = 3
Dimensions = 2.92 x 1.3 x 0.95mm
Minimum Operating Temperature = -40 °Cmm
Voltage Reference, Intersil
Technical data
| Characteristic | Value |
|---|---|
| Product Type | Precision Voltage Reference |
| Package Type | SOT-23 |
| Reference Voltage | 3.3V |
| Reference Type | Fixed |
| Initial Accuracy | ±0.03 % |
| Mount Type | Surface |
| Temperature Coefficient | 20 ppm/°C |
| Topology | Series |
| Output Current | 20mA |
| Maximum Input Voltage | 5.5V |
| Pin Count | 3 |
| Minimum Operating Temperature | -40°C |
| Line Regulation | 200 μV/V |
| Maximum Operating Temperature | 105°C |
| Series | ISL60002 |
| Standards/Approvals | No |
| Height | 0.95mm |
| Length | 2.92mm |
| Output Type | Fixed |
| Minimum Input Voltage | 2.7V |
| Automotive Standard | No |
Datasheet
Manufacturer
Intersil
Weight
125 G
Pack Size
1 unit = 1 units
Base Unit of Measure
PCE
Shipping
2–3 days within Germany / 3–6 days within EU
