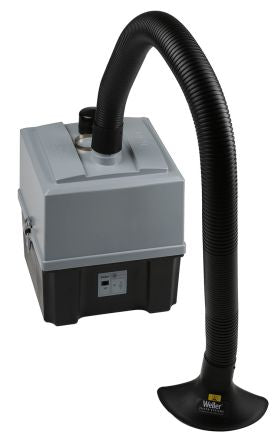

Weller Zero Smog EL Kit 1, 230V Solder Fume Extractor, 110 W

Weller Zero Smog EL Kit 1, 230V Solder Fume Extractor, 110 W

€1.111,50 EUR
€1.111,50 EUR
Sale Sold out
Shipping calculated at checkout. Prices exclude VAT.

MPN: FT91012699N

RS-ID: 100-0147

34 in stock
Description

Weller Zero Smog EL Kit 1 Soldering Fume Extraction Unit. The Weller zero smog EL extraction kit is the perfect cost-efficient solution covering small soldering applications. The fume extraction kit has a very high-quality long file brushless turbine which produces a generous suction volume with a high level of extraction power suction volume. With the Zero Smog fume extraction kit you have an on/off switch which helps to save energy and included is an electronic filter monitor complete with an alarm. This fume extractor can operate at up to two work places providing you as the user with maximum health protection. Easily adjustable and easy to install with flexible easy-click 60 arms the Zero Smog fume extraction unit is ready to use in less than 4 minutes. FEATURES and BENEFITS: For up to two work-places Changeable medium fine dust pre-filter M5 Active carbon foam for effective gas cleaning Portable Place under or next to a bench-top Easy filter change Large HEPA H13 filter surface Longer filter lifetime 4 -speed adjustment for power regulation Additional health protection Filter monitoring Filter alarm Maintenance-free brushless EC turbine Easy-Click system Quick and easy to install What is Included? Zero Smog EL Fume Extraction unit 1 x flexible and adjustable arm (OF15, 1.5 meters long and a diameter of 60mm) 1 x Funnel nozzle ALFA (225 x 100mm) 1 x Clamp for securing the fume arm DIMENSIONS: Width 335 mm Depth 360 mm Height 445 mm Weight 8.6 kg FILTERS: Pre-filter mat class M5 Particle filter H13 Active carbon filter (granular activated effective gas filtering). Extracts and filters Solder Fumes Replacement Filters: Stock number (391359) 391359 – part number T0058762701 – Solder Fume Filter. VOLTAGE / OUTPUT: Voltage 220 to 240 V Heating output 120 VA VACUUM: Maximum 2500 pa Capacity 150 m3/h

Technical data
Characteristic Value
Product Type Solder Fume Extractor
Model Number Zero Smog EL Kit 1
Main Filter Type Welding Fumes
Noise Level 53dBA
Voltage 230V
Power Rating 110W
ESD Safe No
Maximum Air Flow 150m³/h
Remote Control Yes
Depth 330mm
Height 445mm
Width 330mm
Filter Full Alarm Yes
Weight 8.6kg
Standards/Approvals No
Extraction Type Volume
Datasheet
Manufacturer

Weller

Weight

12.09 KG

Pack Size

1 unit = 1 units

Base Unit of Measure

PCE

Shipping

2–3 days within Germany / 3–6 days within EU
