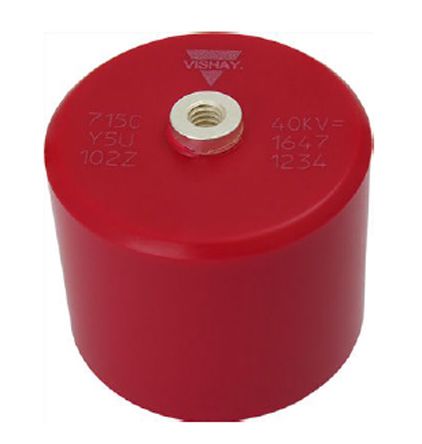

Vishay Single Layer Ceramic Capacitor 10 nF 15kV dc -20 to 80 % Y5U Dielectric, 715C, Screw 85 °C Max Op. Temp. - pack size 20 units
Vishay Single Layer Ceramic Capacitor 10 nF 15kV dc -20 to 80 % Y5U Dielectric, 715C, Screw 85 °C Max Op. Temp. - pack size 20 units
MPN: 715C15DKS10
RS-ID: SKU:169-3067
Out of stock
Couldn't load pickup availability
Description
Vishay 715C DK Series. Vishay 715C DK series are high-voltage ceramic disc capacitors made from class2 ceramic and coated in an epoxy case. These single layer capacitors have low inductance and high insulation resistance and have a screw terminal mounting. Capacitance range 100 pF to 10 nF. Applications. Xray equipment High-voltage power supplies CO2 lasers Industrial Welding equipment. X ray equipment High-voltage power supplies Industrial CO2 lasers Welding equipment
Technical data
| Characteristic | Value |
|---|---|
| Product Type | Single Layer Ceramic Capacitor |
| Capacitance | 10nF |
| Voltage | 15kV dc |
| Mount Type | Screw |
| Series | 715C |
| Packaging | Bulk |
| Tolerance | -20 to 80 % |
| Dielectric | Y5U |
| Automotive Standard | No |
| Package/Case | 0814 |
| Pin Count | 2 |
| Minimum Operating Temperature | -30°C |
| Height | 22.9mm |
| Diameter | 45.7mm |
| Standards/Approvals | IEC 61249-2-21, EC, RoHS |
| Suppression Class | Class II |
| Terminal Type | Screw |
| Maximum Operating Temperature | 85°C |
| Dissipation Factor | 0.02% |
Datasheet
Manufacturer
Vishay
Weight
0.005 G
Pack Size
1 bx = 20 units
Base Unit of Measure
PCE
Shipping
Expected availability from RS: 03.06.2026
