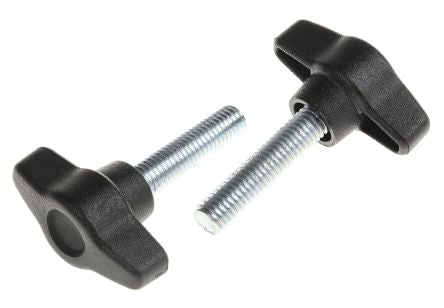

RS PRO Black Thermoplastic Wing Clamping Knob, Threaded Stud - pack size 10 units

Description

RS PRO Impact Resistant Winged Handwheel Knobs. ;p>Knobs are used in a wide variety of applications in our day-to-day lives and perform many functions, from being used as fixed handles to being used to tighten, loosen, adjust, clamp and push other components or pieces of equipment. They are used in various applications, from industrial and construction machinery to audio and visual equipment. ;/p> ;p>Winged handwheels have an ergonomic shape to provide more user comfort when adjusted by hand and can be designed to have straight or offset handles depending on the desired application, pressure and aesthetic. The knobs are fitted with either a protruding screw (male), a threaded insert (female) or through threads depending on the requirements of the application. ;/p>. ;p>These knobs are made from Nylon 6 plastic, a high impact-resistance thermoplastic, to protect them from damage during use and have either brass (female and through threads) or zinc-plated steel (male) threads. Brass and zinc-plated steel provide wear resistance for the threads, both internal and external, to ensure that the threads last throughout wear and tear and general use. ;/p> ;p>Female knobs: M5 (RS ; 161436 161436 ), M6 (RS ; 161458 161458 ), M8 (RS ; 161470 161470 ), M10 (RS ; 161486 161486 ). ;/p> ;p>Male knobs: M5 (RS ; 169266 169266 ), M6 (RS ; 169272 169272 ), M6 (RS ; 169288 169288 ), M8 (RS ; 169294 169294 ), M6 (RS ; 169301 169301 ), M8 (RS ; 169317 169317 ), M8 (RS ; 169323 169323 ), M10 (RS ; 169339 169339 ). ;/p> ;p>Through-threaded knobs: M6 (RS ; 169345 169345 ), M8 (RS ; 169367 169367 ), M10 (RS ; 169373 169373 ). ;/p>. Features ; Benefits. ;ul> ;li>Nylon Polyamide 6 ;/li> ;li>Zinc plated steel studs and brass female/through threads ;/li> ;li>Matte black finish ;/li> ;li>Working temperature range of -30°C to +85°C ;/li> ;li>Melting point of +215°C ;/li> ;li>Tolerant of weak acids, with excellent resistance to chlorinated hydrocarbons ;/li> ;/ul>. Applications. ;p>These winged handwheel knobs are commonly used in applications in which panels are removable or when the level of pressure required throughout an operation varies and needs to be adjusted, including: ;/p> ;ul> ;li>Adjustable tripods ;/li> ;li>Audio and visual equipment ;/li> ;li>Adjustable/temporary furniture ;/li> ;/ul>

Technical data

Datasheet

• RS Pro Datasheet

Manufacturer

RS PRO

Weight

24.2 G

Pack Size

1 pack = 10 units

Base Unit of Measure

PCE

Shipping

2–3 days within Germany / 3–6 days within EU
