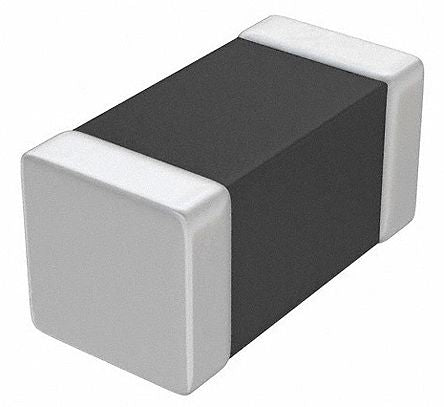

Murata Ferrite Bead 0.8 mm (Solder) (0603) (Chip Ferrite Bead), 600 Ω impedance at 100 MHz, 700 Ω impedance at 1 GHz - pack size 4000 units

Murata Ferrite Bead 0.8 mm (Solder) (0603) (Chip Ferrite Bead), 600 Ω impedance at 100 MHz, 700 Ω impedance at 1 GHz - pack size 4000 units

Regular price €0,08 EUR
Regular price Sale price €0,08 EUR
Sale Sold out
Shipping calculated at checkout. Prices exclude VAT.

MPN: BLM18EG601SH1D

RS-ID: SKU:169-2760

Out of stock

Description

SMD 0603 Ferrite Filters- BLM18EG/GG/HB/HD/HE/HG/HK Series. BLM series ferrite beads from Murata do not require a ground connection and are ideal for use in circuits with unstable ground lines. Excellent solder heat resistance is provided by the nickel barrier construction of the external electrodes. These ferrite beads are designed to function nearly as resistors at noise frequencies, leaving signal wave forms undistorted and reducing the possibility of resonance. This series of ferrite beads are designed for general use applications.

Technical data
Characteristic Value
Package Type 0603
Product Type Ferrite Bead
Impedance at 100 MHz 600Ω
Impedance at 1 GHz 700Ω
Current Rating 500mA
Sub Type Chip Ferrite Bead
Mount Type Solder
Minimum Operating Temperature -55°C
Maximum Operating Temperature 125°C
Depth 0.8mm
Height 0.8mm
Standards/Approvals AEC-Q200
Maximum DC Resistance 350mΩ
Length 1.6mm
Application Automotive
Series BLM18EG
Automotive Standard AEC-Q200
Material Ferrite
Datasheet
Manufacturer

Murata

Weight

0.001 G

Pack Size

1 reel = 4000 units

Base Unit of Measure

PCE
