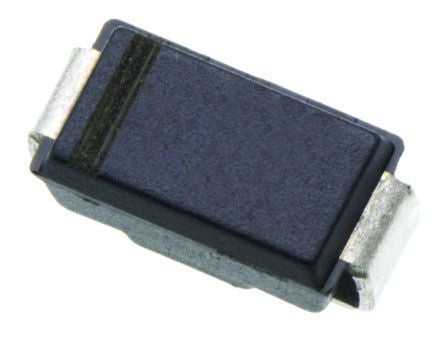

Littelfuse 1-Element Bi-Directional TVS Diode, 400 W, 2-Pin DO-214 - pack size 3000 units

Littelfuse 1-Element Bi-Directional TVS Diode, 400 W, 2-Pin DO-214 - pack size 3000 units

Regular price €0,16 EUR
Regular price Sale price €0,16 EUR
Sale Sold out
Shipping calculated at checkout. Prices exclude VAT.

MPN: SMAJ12CA

RS-ID: SKU:169-0731

45000 in stock

Description

Direction Type = Bi-Directional
Maximum Clamping Voltage = 19.9V
Minimum Breakdown Voltage = 13.3V
Mounting Type = Surface Mount
Package Type = DO-214AC (SMA)
Maximum Reverse Stand-off Voltage = 12V
Pin Count = 2
Peak Pulse Power Dissipation = 400W
Maximum Peak Pulse Current = 20.1A
Number of Elements per Chip = 1
Minimum Operating Temperature = -65 °C
Maximum Operating Temperature = +150 °Cmm
Height = 2.087mm

TVS Diodes SMT Bidirectional 400W, SMAJ Series, Littelfuse

Technical data
Characteristic Value
Product Type TVS Diode
Direction Type Bi-Directional
Diode Configuration Single
Minimum Breakdown Voltage Vbr 13.3V
Mount Type Surface
Package Type DO-214
Maximum Reverse Stand-off Voltage Vwm 12V
Pin Count 2
Peak Pulse Power Dissipation Pppm 400W
Maximum Peak Pulse Current Ippm 20.1A
Clamping Voltage VC 19.9V
Minimum Operating Temperature -65°C
Test Current It 1mA
ESD Protection Yes
Maximum Operating Temperature 150°C
Number of Elements per Chip 1
Length 4.5mm
Width 2.79mm
Series SMAJ
Standards/Approvals No
Height 2.087mm
Automotive Standard No
Maximum Reverse Leakage Current 1μA
Datasheet
Manufacturer

Littelfuse

Weight

0.001 G

Pack Size

1 reel = 3000 units

Base Unit of Measure

PCE

Shipping

2–3 days within Germany / 3–6 days within EU
