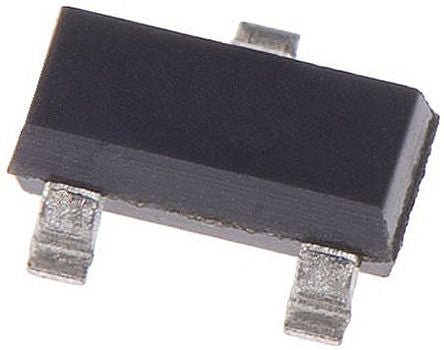

Diodes Inc Transistor, 2 A NPN, 20 V, 3-Pin SOT-23 - pack size 3000 units

Diodes Inc Transistor, 2 A NPN, 20 V, 3-Pin SOT-23 - pack size 3000 units

Regular price €0,15 EUR
Regular price Sale price €0,15 EUR
Sale Sold out
Shipping calculated at checkout. Prices exclude VAT.

MPN: ZXTN25020DFLTA

RS-ID: SKU:169-0721

Out of stock

Description

Transistor Type = NPN
Maximum DC Collector Current = 2 A
Maximum Collector Emitter Voltage = 20 V
Package Type = SOT-23
Mounting Type = Surface Mount
Maximum Power Dissipation = 350 mW
Minimum DC Current Gain = 300
Transistor Configuration = Single
Maximum Collector Base Voltage = 100 V
Maximum Emitter Base Voltage = 7 V
Maximum Operating Frequency = 215 MHz
Pin Count = 3
Number of Elements per Chip = 1
Maximum Operating Temperature = +150 °Cmm

General Purpose NPN Transistors, Over 1.5A, Diodes Inc

Technical data
Characteristic Value
Product Type Transistor
Maximum DC Collector Current Idc 2A
Maximum Collector Emitter Voltage Vceo 20V
Package Type SOT-23
Mount Type Surface
Transistor Configuration Single
Maximum Collector Base Voltage VCBO 100V
Minimum DC Current Gain hFE 80
Transistor Polarity NPN
Maximum Power Dissipation Pd 350mW
Maximum Transition Frequency ft 215MHz
Maximum Emitter Base Voltage VEBO 7V
Minimum Operating Temperature -55°C
Maximum Operating Temperature 150°C
Pin Count 3
Length 0.53mm
Standards/Approvals No
Series ZXTNX
Height 3.05mm
Automotive Standard No
Datasheet
Manufacturer

DiodesZetex

Weight

0.001 G

Pack Size

1 reel = 3000 units

Base Unit of Measure

PCE

Shipping

Expected availability from RS: 23.06.2027
