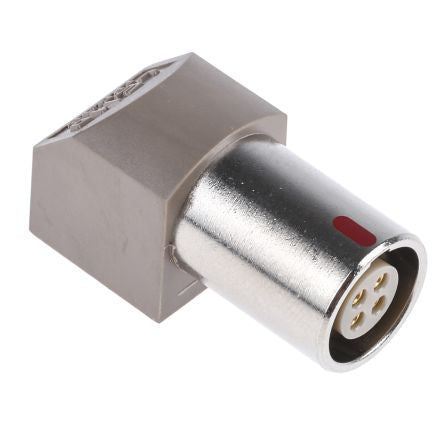

LEMO Circular Connector, 4 Contacts, Panel Mount, 12.6 mm Connector, Socket, Female, IP50, 1B Series

LEMO Circular Connector, 4 Contacts, Panel Mount, 12.6 mm Connector, Socket, Female, IP50, 1B Series

Regular price €77,05 EUR
Regular price Sale price €77,05 EUR
Sale Sold out
Shipping calculated at checkout. Prices exclude VAT.

MPN: EPG.1B.304.HLN

RS-ID: SKU:130-5889

111 in stock

Description

Lemo Circular ConnectorThe Lemo 1B series 4-contacts female elbow socket circular connector has a current rating of 6A. This connector features a highly precise push-pull latching system with high-density panel spacing and quick mating or unmating. It has a rugged and robust design for every environmental and mechanical requirement for indoor and outdoor applications. It is made from polyphenylene sulphide and nickel-plated brass contacts for a printed circuit with two nuts (solder or screw fixing, back panel mounting).Features and BenefitsRight angled body orientation Solder termination EMC shielding of 360° Endurance is 5000 mating cycles High vibration and shock resistance Operation temperature ranges between -55°C and 250°C Waterproof and UV resistance capabilitiesApplicationsAudio/video applications Medical devices Research Test and measurement instrumentationCertificationsCE certified IP50 rated UL approved

Technical data
Characteristic Value
Number of Contacts 4
Product Type Circular Connector
Mount Type Panel Mount
Current 4.5A
Connector Size 12.6 mm
Plug/Socket Socket
Contact Gender Female
IP Rating IP50
Series 1B
Orientation Right Angle
Voltage 1800V
Mating Type Push Pull
Termination Type Solder
Shell Size 1
Minimum Operating Temperature -55°C
Housing Material Brass
Maximum Operating Temperature 250°C
Standards/Approvals No
Pole Format 4
Contact Plating Gold over Nickel
Contact Material Beryllium Alloy
Datasheet
Manufacturer

Lemo

Weight

13 G

Pack Size

1 unit = 1 units

Base Unit of Measure

PCE

Shipping

2–3 days within Germany / 3–6 days within EU
