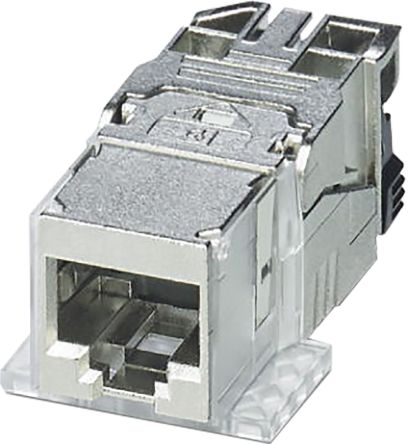

Phoenix Contact CUC-F-J1ZNI-S/R4IDC8 Series RJ45 Connector Female, Panel Mount Shielded Straight 1 Port 8 Way
Phoenix Contact CUC-F-J1ZNI-S/R4IDC8 Series RJ45 Connector Female, Panel Mount Shielded Straight 1 Port 8 Way
MPN: 1418984
RS-ID: SKU:130-2308
Low stock: 1 left
Couldn't load pickup availability
Description
Ethernet Connector Type = RJ45 Connector
LAN Category = Cat6a
Mounting Type = Panel Mount
Number of Ways = 8
Orientation = Straight
IP Rating = IP20
Length = 17.9mm
Width = 34.9mm
Depth = 15.6mm
Series = CUC
Contact Material = Copper Alloy
Contact Plating = Gold over Nickel
RJ45 Cat6a IP20 Socket Inserts - CUC Series. Professional 8 position RJ45 socket inserts from Phoenix Contact for use with panel mounting frames. The Cat6a 10 Gbit/s socket inserts are constructed from a robust diecast zinc housing and have an IP20 protection class. The RJ45 socket inserts have an IDC connection method and accommodate 26 AWG to 22 AWG solid or stranded wires. All models are highly reliable and excellent quality. Features and Benefits. Cat6a performance. IP20 ingress protection. IDC connection. 10 Gbit/s. Applications. Part number ; 130-2306 130-2306 for use with push-pull interlocking. Part number ; 130-2308 130-2308 for use with the Freenet system. Part number ; 130-2309 130-2309 for use with the Keystone system
Technical data
| Characteristic | Value |
|---|---|
| Ethernet Connector Type | RJ45 |
| Product Type | RJ45 Connector |
| Number of Ports | 1 |
| Mount Type | Panel Mount |
| Number of Ways | 8 |
| Connector Type | RJ45 |
| Connector Gender | Female |
| Shield Type | Shielded |
| Orientation | Straight |
| IP Rating | IP20 |
| Termination Type | IDC |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | 70°C |
| Hazardous Area Certification | No |
| Depth | 15.6mm |
| Width | 34.9mm |
| Standards/Approvals | No |
| Series | CUC-F-J1ZNI-S/R4IDC8 |
| Length | 17.9mm |
| Contact Material | Copper Alloy |
| Contact Plating | Gold over Nickel |
Datasheet
Manufacturer
Phoenix Contact
Weight
20 G
Pack Size
1 unit = 1 units
Base Unit of Measure
PCE
