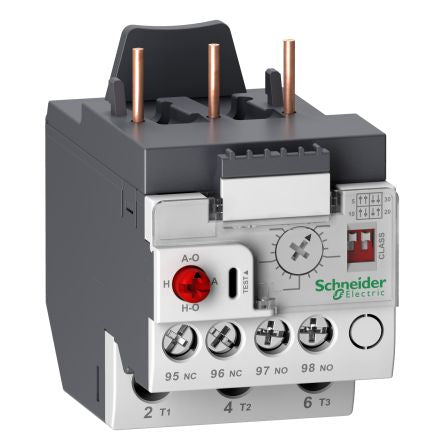

Schneider Electric, TeSys LRD Thermal Overload Relay 1 NO/1 NC, 100mA, 500 mA Contact Rating, 300 mW, 690V 3P
Schneider Electric, TeSys LRD Thermal Overload Relay 1 NO/1 NC, 100mA, 500 mA Contact Rating, 300 mW, 690V 3P
MPN: LR9D01
RS-ID: SKU:130-1033
Out of stock
Couldn't load pickup availability
Description
LR9D Electronic Thermal Overcurrent Relays. Professional range of Schneider Electric thermal overload relays from the LR9D series. The thermal overload relays are designed for direct mounting to contactors. Due to the compact size of the thermal overload relays, space is never an issue. All the thermal overload relay models are highly reliable and excellent quality. Typical application includes pumping, material working, material handling, packaging and HVAC. Test Button Reset Button Reset Mode Selector Trip Indicator IP20 rated on front panel Easily coupled with TeSys N to form compact NEMA starters. Self-powered Ambient insensitivity Selectable trip class (5, 10, 20 and 30)
Technical data
| Characteristic | Value |
|---|---|
| Product Type | Thermal Overload Relay |
| Relay Contact Current | 100, 500mA |
| Mount Type | Under Contactor Mount |
| Series | TeSys LRD |
| Power Rating | 300mW |
| Pole and Throw Configuration | 3P |
| Normal State Configuration | 1 NO/1 NC |
| Terminal Type | Screw Clamp |
| IP Rating | IP20 |
| Reset Method | Automatic & Manual |
| Number of Auxiliary Contacts | 2 |
| Adjustable Current Range | 0.1 to 0.5 A |
| Minimum Operating Temperature | -25°C |
| Width | 79.9mm |
| Maximum Operating Temperature | 70°C |
| Length | 45mm |
| Contact Voltage | 690V |
| Standards/Approvals | CSA C22.2 No 60947-5-1, UL 60947-5-1, EN/IEC 60947-5-1, EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, GB/T 14048.5, CSA C22.2 No 60947-4-1 |
| Depth | 72.5mm |
| Supply Voltage | 690V |
| Control Voltage | 690V |
Datasheet
Manufacturer
Schneider Electric
Weight
208 G
Pack Size
1 unit = 1 units
Base Unit of Measure
PCE
