1 1

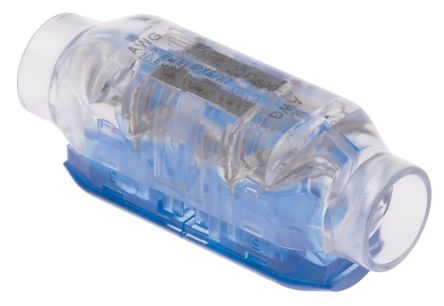

TE Connectivity, CoolSplice In Line Splice Connector, Clear, Insulated 18 AWG

TE Connectivity, CoolSplice In Line Splice Connector, Clear, Insulated 18 AWG

€2,95 EUR
€2,95 EUR
Sale Sold out
Shipping calculated at checkout. Prices exclude VAT.

MPN: 2213800-2

RS-ID: 130-0892

1208 in stock
Description

Splice Type = In Line

IEC 60998-2-3. TE Connectivity CoolSplice Wire Connectors. CoolSplice wire splice connectors suitable for splicing 0.34 mm² to 0.75 mm² solid and stranded wire and producing an industry proven reliable connection. These CoolSplice splice wire connectors use a simple push button termination method allowing easy factory or field installation. When squeezed with pliers the push button terminates the wires by inserting them into an IDC crimp contact. This IDC technology eliminates the need to pre-strip wires and saves installation time. The clear body of these CoolSplice connectors enables visual inspection of the connection and the push buttons are colour coded to aid wire size identification. These CoolSplice IDC wire connectors have gel sealing enabling them to be used in harsh environment applications and offer waterproofing protection up to an IPX8 rating. Features and Benefits. Industry proven reliable connection Simple to use push button termination for ease of installation IDC connection technology for time saving installation Gel sealing for use in harsh environment applications Clear body for visual inspection Colour-coded push buttons for wire size identification. Applications. These CoolSplice IDC wire splice connectors are suitable for use in a wide range of applications. These applications include outdoor lights, commercial refrigeration lighting, lighting display, cabinet lighting, security and alarms systems and audio speaker connections.

Technical data
Characteristic Value
Splice Type In Line
Product Type Splice Connector
Overall Length 36.4mm
Minimum Wire Size AWG 22AWG
Minimum Wire Size mm² 0.75mm²
Diameter 16mm
Maximum Wire Size mm² 0.82mm²
Insulation Insulated
Maximum Wire Size AWG 18AWG
Colour Clear
Insulation Material Polycarbonate
Series CoolSplice
Contact Material Phosphor Bronze
Termination Type IDC
Thickness 11.4mm
Standards/Approvals No
Datasheet
Manufacturer

TE Connectivity

Weight

3 G

Pack Size

1 unit = 1 units

Base Unit of Measure

PCE

Shipping

2–3 days within Germany / 3–6 days within EU

View full details
