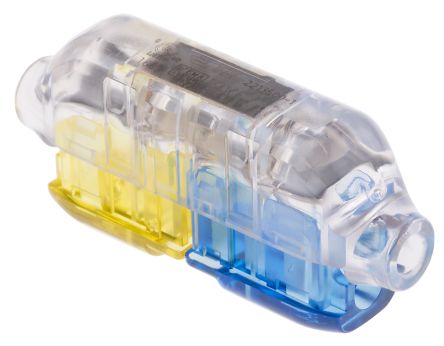

TE Connectivity, 221 In Line Splice Connector, Clear, Insulated, Tin 12 AWG

TE Connectivity, 221 In Line Splice Connector, Clear, Insulated, Tin 12 AWG

€3,83 EUR
€3,83 EUR
Sale Sold out
Shipping calculated at checkout. Prices exclude VAT.

MPN: 2213600-1

RS-ID: 130-0889

291 in stock
Description

IEC 60998-2-3. TE Connectivity CoolSplice Large Wire Splice Connectors. CoolSplice large wire splice connectors suitable for splicing 0.75 mm² to 4 mm² wire and producing an industry proven reliable connection. These CoolSplice splice connectors have two independent push buttons on the left and right side of the connector. The wires can be terminated independently allowing ease of use and flexibility in factory or field installation. When squeezed with pliers the push buttons terminate the wires by inserting them into an IDC crimp contact. This IDC technology eliminates the need to pre-strip wires and saves installation time. The clear body of these CoolSplice connectors enables visual inspection of the connection and the push buttons are colour coded to aid wire size identification. These CoolSplice IDC wire connectors have gel sealing enabling them to be used in harsh environment applications and offer waterproofing protection up to an IPX8 rating. Features and Benefits. Suitable for large wire sizes Industry proven reliable connection Independent push button termination for ease of installation IDC connection technology for time saving installation Gel sealing for use in harsh environment applications Clear body for visual inspection Colour-coded push buttons for wire size identification. Applications. These CoolSplice large wire splice connectors are suitable for use in a wide range of applications. These applications include roadway lighting, street lighting, signage, buildings and bridge and tunnel lighting. These CoolSplice large wire splice connectors are also used in indoor light fixtures and wire harness field repairs

Technical data
Characteristic Value
Splice Type In Line
Product Type Splice Connector
Overall Length 48mm
Minimum Wire Size AWG 16AWG
Minimum Wire Size mm² 1.5mm²
Maximum Wire Size mm² 4mm²
Maximum Wire Size AWG 12AWG
Insulation Insulated
Colour Clear
Insulation Material Polycarbonate
Series 221
Contact Material Phosphor Bronze
Termination Type Push Button
Contact Plating Tin
Thickness 12.8mm
Standards/Approvals UL 486C, IEC 60998-2-3, UL 94V-2
Datasheet
Manufacturer

TE Connectivity

Weight

7 G

Pack Size

1 unit = 1 units

Base Unit of Measure

PCE

Shipping

2–3 days within Germany / 3–6 days within EU
