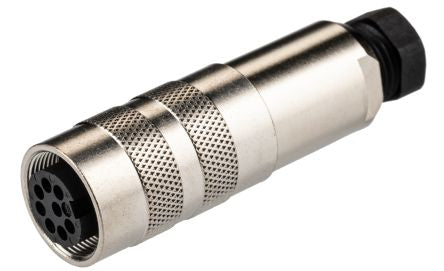

binder Circular Connector, 8 Contacts, Cable, M16 Connector, Socket, Female, IP67, IP68, 423 Series

binder Circular Connector, 8 Contacts, Cable, M16 Connector, Socket, Female, IP67, IP68, 423 Series

Regular price €16,61 EUR
Regular price Sale price €16,61 EUR
Sale Sold out
Shipping calculated at checkout. Prices exclude VAT.

MPN: 99.5172.15.08

RS-ID: SKU:129-8179

Out of stock

Description

Binder Circular ConnectorThe Binder 423 series 8 DIN contacts, female miniature circular connector has socket type connection. This cable mount connector has a voltage rating of 60V and a current rating of up to 5A per contact. This connector is made of polybutylene terephthalate (PBT) with nickel-plated brass and gold-plated brass contacts. It supports a screw connector locking mechanism for sturdy mating attenuation and reliable contact.Features and BenefitsStraight body orientation Solder termination Durability is greater than 500 mating cycles Can be shielded Shielding ring Excellent EMC characteristics Internal strain relief Wire gauge is 20AWG Cable outlet ranges between 4mm and 6mm Operating temperature ranges between -40°C and 85°C Robust metal plug connector with a screw lock to IEC 130-9ApplicationsProcess control Industrial automation and instrumentation Commercial electronicsCertificationsIP67 rated UL approved

Technical data
Characteristic Value
Product Type Circular Connector
Number of Contacts 8
Mount Type Cable
Current 5A
Connector Size M16
Plug/Socket Socket
Contact Gender Female
IP Rating IP67, IP68
Series 423
Orientation Straight
Voltage 60.0V
Mating Type Screw
Shell Size 18.5 mm
Termination Type Solder
Minimum Operating Temperature -30°C
Maximum Operating Temperature 95°C
Housing Material Copper Zinc Alloy
Standards/Approvals UL
Pole Format 8
Contact Plating Silver
Contact Material Bronze
Datasheet
Manufacturer

Binder

Weight

46 G

Pack Size

1 unit = 1 units

Base Unit of Measure

PCE

Shipping

Expected availability from RS: 11.06.2026
