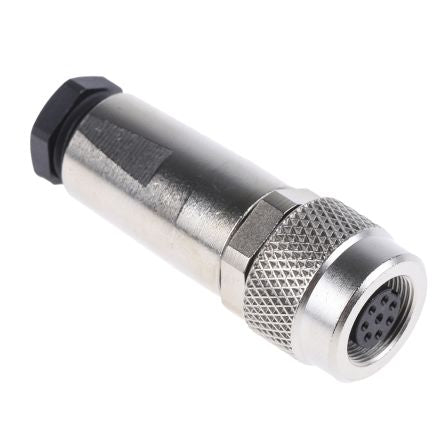

binder Circular Connector, 8 Contacts, Cable, M9 Connector, Socket, Female, IP67, 712 Series
binder Circular Connector, 8 Contacts, Cable, M9 Connector, Socket, Female, IP67, 712 Series
MPN: 99.0426.10.08
RS-ID: SKU:129-8040
168 in stock
Couldn't load pickup availability
Description
Number of Contacts = 8
Mount Type = Cable
Connector Size = M9A
Plug/Socket = Socket
Contact Gender = Female
IP Rating = IP67
Orientation = Straight
Voltage = 125 V
Shell Size = 14 mm°C
Housing Material = Metal
Standards/Approvals = No
Contact Plating = Gold
Distrelec Product Id = 144-01-460
Binder Circular ConnectorThe Binder 712 series 8-contacts, M9 female subminiature circular connector has socket type connection. This cable mount connector has a voltage rating of 125V and a current rating of up to 1A per contact. This connector is made of polybutylene terephthalate (PBT) with nickel-plated brass and gold-plated brass contacts. It supports a screw connector locking mechanism for sturdy mating attenuation and reliable contact.Features and BenefitsStraight body orientation Solder termination Durability is greater than 500 mating cycles Can be shielded Wire gauge is 26AWG Cable outlet ranges between 3.5mm and 5mm Operating temperature ranges between -40°C and 85°CApplicationsProcess control Industrial automation and instrumentation Commercial electronicsCertificationsIP67 rated UL approved
Technical data
| Characteristic | Value |
|---|---|
| Product Type | Circular Connector |
| Number of Contacts | 8 |
| Mount Type | Cable |
| Current | 1A |
| Connector Size | M9 |
| Plug/Socket | Socket |
| Contact Gender | Female |
| IP Rating | IP67 |
| Series | 712 |
| Orientation | Straight |
| Voltage | 125.0V |
| Termination Type | Solder |
| Minimum Operating Temperature | -40°C |
| Shell Size | 14 mm |
| Housing Material | Metal |
| Maximum Operating Temperature | 85°C |
| Standards/Approvals | No |
| Contact Plating | Gold |
| Contact Material | Brass |
Datasheet
Manufacturer
Binder
Weight
70 G
Pack Size
1 unit = 1 units
Base Unit of Measure
PCE
Shipping
2–3 days within Germany / 3–6 days within EU
