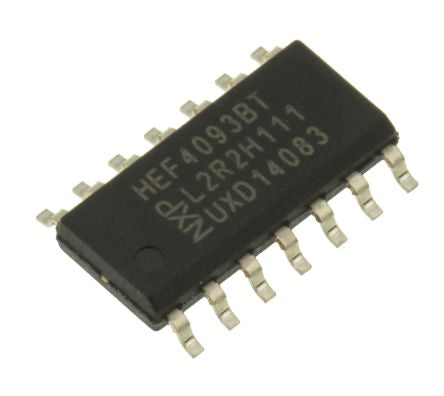

Nexperia HEF4093BT,652, 4 2-Input NAND Schmitt Trigger Input Logic Gate, 14-Pin SOIC - pack size 57 units

Nexperia HEF4093BT,652, 4 2-Input NAND Schmitt Trigger Input Logic Gate, 14-Pin SOIC - pack size 57 units

Regular price €0,52 EUR
Regular price Sale price €0,52 EUR
Sale Sold out
Shipping calculated at checkout. Prices exclude VAT.

MPN: HEF4093BT,652

RS-ID: SKU:124-2313

1938 in stock

Description

Logic Gates

Technical data
Characteristic Value
Product Type Logic Gate
Logic Function NAND
Mount Type Surface
Number of Elements 4
Number of Inputs per Gate 2
Schmitt Trigger Input Yes
Package Type SOIC
Pin Count 14
Logic Family 4000
Input Type Schmitt Trigger
Minimum Operating Temperature -40°C
Maximum High Level Output Current -4.2mA
Maximum Propagation Delay Time @ CL 185ns
Maximum Operating Temperature 125°C
Height 1.45mm
Minimum Supply Voltage 3V
Standards/Approvals JEDEC JESD 13-B
Series HEF4093B
Maximum Supply Voltage 15V
Length 8.75mm
Maximum Low Level Output Current 4.2mA
Automotive Standard No
Datasheet
Manufacturer

Nexperia

Weight

0.877 G

Pack Size

1 tu = 57 units

Base Unit of Measure

PCE

Shipping

2–3 days within Germany / 3–6 days within EU
