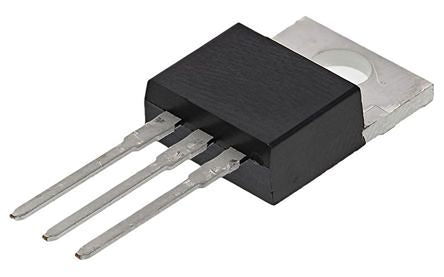

NXP Through Hole, 3-Pin, TRIAC 800 V, Gate Trigger 1 V - pack size 50 units
NXP Through Hole, 3-Pin, TRIAC 800 V, Gate Trigger 1 V - pack size 50 units
MPN: BT139-800E,127
RS-ID: SKU:124-2294
Out of stock
Couldn't load pickup availability
Description
Rated Average On-State Current Irms = 20A
Mount Type = Through Hole
Package Type = TO-220
Maximum Gate Trigger Current Igt = 25mA
Repetitive Peak Reverse Voltage VDRM = 800V
Surge Current Rating = 170A
Pin Count = 3
Configuration = SingleV
Maximum Holding Current Ih = 45mA
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = 125°C
Height = 16mm
Repetitive Peak Off-State Current = 0.5mA
Technical data
| Characteristic | Value |
|---|---|
| Product Type | TRIAC |
| Rated Average On-State Current Irms | 20A |
| Mount Type | Through Hole |
| Package Type | TO-220 |
| Maximum Gate Trigger Current Igt | 25mA |
| Repetitive Peak Reverse Voltage VDRM | 800V |
| Surge Current Rating | 170A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage Vgt | 1V |
| Configuration | Single |
| Maximum Holding Current Ih | 45mA |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 125°C |
| Height | 16mm |
| Length | 10.3mm |
| Standards/Approvals | RoHS |
| Automotive Standard | No |
| Repetitive Peak Off-State Current | 0.5mA |
| Peak On-State Voltage | 1.6V |
Datasheet
Manufacturer
NXP
Weight
1.000 G
Pack Size
1 tu = 50 units
Base Unit of Measure
PCE
Shipping
Expected availability from RS: 23.09.2026
