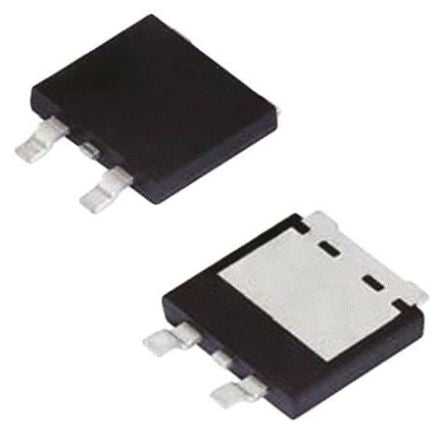

Vishay 120 V 35 A Diode Schottky 3-Pin DPAK V35PWM12HM3/I - pack size 5 units
Vishay 120 V 35 A Diode Schottky 3-Pin DPAK V35PWM12HM3/I - pack size 5 units
MPN: V35PWM12HM3/I
RS-ID: SKU:124-2247
Low stock: 5 left
Couldn't load pickup availability
Description
Product Type = Diode
Package Type = TO-252
Maximum Continuous Forward Current If = 35A
Peak Reverse Repetitive Voltage Vrrm = 120V
Diode Configuration = Single
Rectifier Type = Schottky
Pin Count = 3
Peak Reverse Current Ir = 40mA
Maximum Operating Temperature = 175°C
Length = 6.32mm
Automotive Standard = AEC-Q101
Technical data
| Characteristic | Value |
|---|---|
| Mount Type | Surface |
| Product Type | Diode |
| Package Type | TO-252 |
| Maximum Continuous Forward Current If | 35A |
| Peak Reverse Repetitive Voltage Vrrm | 120V |
| Series | V35X |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Pin Count | 3 |
| Minimum Operating Temperature | -40°C |
| Maximum Forward Voltage Vf | 1.05V |
| Peak Non-Repetitive Forward Surge Current Ifsm | 260A |
| Peak Reverse Current Ir | 40mA |
| Maximum Operating Temperature | 175°C |
| Length | 6.32mm |
| Height | 1.4mm |
| Standards/Approvals | No |
| Automotive Standard | AEC-Q101 |
Datasheet
Manufacturer
Vishay
Weight
1.000 G
Pack Size
1 pack = 5 units
Base Unit of Measure
PCE
