Description

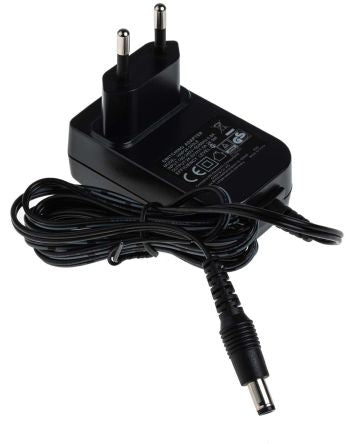

RS PRO, 24 W AC DC Adapter 24 V DC, 1 A, Level VI Efficiency, 1 Output Power Adapter, Type CStay connected and keep your mobile devices charged with the RS PRO 2-pin Europlug. The AC/DC adaptor fits into domestic sockets used across Europe and will charge laptops, tablets or other portable electronic equipment. The plug converts AC current into DC voltage, which then powers your electrical appliances. Its supplied in a low-profile, compact casing with a 1.5 m cable. The unit is double insulated to ensure the output wires are separated from the AC input and it consumes just 0.075 W in standby mode, so it wont waste power. Its also protected from short circuits and power overload for added safety. This small, lightweight, adaptor won’t take up much space and is energy-efficient, meeting the EU CoC (European Union Certificate of Conformity) Tier 2 efficiency standard and EnergyStar DOE (Department of Energy) VI specifications. It can also be used to charge smartphones, single board computers and telecommunications equipment.Features and Benefits• Double insulated AC/DC adaptor • Small, low-profile plug-in switching adaptor • Low standby power consumption • Type C plug • Input frequency range of 47 Hz to 63 Hz • Energy efficiency level of VI • Power rating of 24 W • Power adapter with EU plug • Applications include networking, peripherals, portable equipment, single board computers, tablets and smartphones, telecommunications and wireless communication • Output connector of 2.1 mm x 5.5 mm x 10 mm centre positive • Output voltage of 24 V DC • Minimum input current of 800 mA • Output current of 1 A • Input voltage of 100 V AC, 110 V AC, 115 V AC, 120 V AC, 127 V AC, 220 V AC, 230 V AC, 240 V AC • Holdup time of 20 ms • One output • Includes over-current, over-voltage, overload, and short-circuit protection • Cable length of 1.5 m • Power signal conversion type of AC-DC • Operating temperature range of -10°C to +40°C • Dimensions of 69.3 mm x 41.4 mm x 46 mm • CE certified and meets the EN 55013, EN 55014-1, EN 55014-2, EN 55020, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, EU CoC V5, TUV/GS EN 60950-1 and UL 60065 standards for radio signal disturbance and immunity and electromagnetic compatibility • RoHS (Restriction of Hazardous Substances) compliantRS PRORS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
Technical data
| Characteristic |
Value |
| Product Type |
AC/DC Adapter |
| Plug Type |
Type C |
| Output Voltage |
24V dc |
| Output Connector Type |
2.1 x 5.5 x 10 mm Centre Positive |
| Power |
24W |
| Cable Length |
1.5m |
| Number of Outputs |
1 |
| Adapter Current |
1A |
| Input Connector Type |
EU Plug |
| Minimum Operating Temperature |
-10°C |
| Maximum Operating Temperature |
40°C |
| Standards/Approvals |
CE, EN 55013, EN 55014-1, EN 55014-2, EN 55020, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, EU CoC V5, TUV/GS EN 60950-1, UL 60065 |
| Width |
46mm |
| Depth |
46mm |
| Length |
69.3mm |
| Energy Efficiency Level |
VI |
| Minimum Input Voltage |
100V ac |
| Series |
HNP24 |
Datasheet
Manufacturer
RS PRO
Weight
114.000 G
Pack Size
1 unit = 1 units
Base Unit of Measure
PCE
