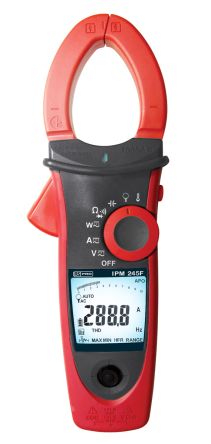

RS PRO IPM245F Clamp Meter, 1 kA 1 kA 1000 V dc 1000 V ac CAT IV, CAT III Non-Contact Voltage Detector
RS PRO IPM245F Clamp Meter, 1 kA 1 kA 1000 V dc 1000 V ac CAT IV, CAT III Non-Contact Voltage Detector
MPN: 1241963
RS-ID: SKU:124-1963
43 in stock
Couldn't load pickup availability
Description
Clamp Meters
Technical data
| Characteristic | Value |
|---|---|
| Product Type | Clamp Meter |
| Maximum DC Current Measurement | 1kA |
| Resistance Resolution | 100mΩ |
| Maximum AC Voltage Measurement | 1000V ac |
| Maximum DC Voltage Measurement | 1000V dc |
| Maximum Resistance Measurement | 100kΩ |
| Model Number | IPM245F |
| AC Current Accuracy | ±1.5 % rdg + 5 Digits |
| AC Current Resolution | 100mA |
| AC Voltage Accuracy | ±1 % rdg + 5 Digits |
| DC Current Resolution | 100mA |
| Minimum Operating Temperature | 0°C |
| Temperature Resolution | 0.1°C |
| Resistance Measurement Accuracy | ±1 % + 3 Digits |
| DC Voltage Accuracy | ±0.7 % rdg + 2 Digits |
| DC Voltage Resolution | 100 mV dc |
| DC Current Accuracy | ±1.5 % rdg + 5 Digits |
| Maximum Jaw Opening | 27mm |
| AC Voltage Resolution | 100mV ac |
| Temperature Measurement Accuracy | ±1 % + 1 °C |
| Clamp Meter Type | Power Clamp Meter |
| Maximum Operating Temperature | 50°C |
| Width | 50.5mm |
| Standards/Approvals | IEC 610101, RoHS Certificate of |
| Length | 87.5mm |
| Height | 257mm |
| Weight | 470g |
| Functions Measured | Power Factor, DC Voltage, Frequency, DC Current, AC Current, Total Harmonic Distortion, Continuity, Temperature, Harmonics, AC Voltage, Diode, Power, Resistance, Capacitance |
| True RMS | Yes |
| Battery Type | Alkaline |
| Safety Category Voltage | 1000V |
| Power Source | Battery |
| Display Type | LCD Backlight |
| Battery Life | 100h |
| Maximum AC Current Measurement | 1kA |
| Maximum Conductor Size | 42mm |
| Non-Contact Voltage Detector | Yes |
| Safety Category Level | CAT IV, CAT III |
| Maximum Temperature Measurement | 1000°C |
Datasheet
Manufacturer
RS PRO
Weight
805.000 G
Pack Size
1 unit = 1 units
Base Unit of Measure
PCE
