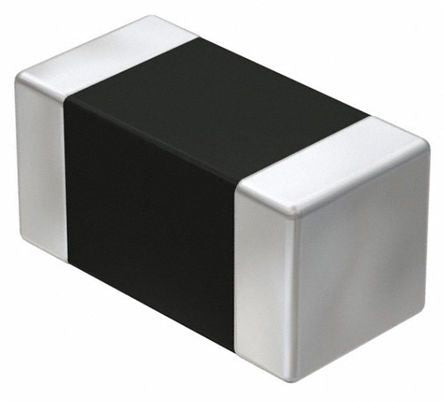

Wurth Elektronik Ferrite Bead 0.9 mm (Surface) (0805) (High Speed), 75 Ω impedance at 100 MHz - pack size 100 units
Wurth Elektronik Ferrite Bead 0.9 mm (Surface) (0805) (High Speed), 75 Ω impedance at 100 MHz - pack size 100 units
Please note: Delivery time is currently at least 4 weeks.
Description
Package Type = 0805
Packaging = Tape & ReelΩ
Impedance at 500 MHz = 300Ω
Current Rating = 300mA
Sub Type = High Speed
Minimum Operating Temperature = -55°C
Maximum Operating Temperature = 125°C
Height = 0.9mm
Series = WE-CBF
Technical data
| Characteristic | Value |
|---|---|
| Product Type | Ferrite Bead |
| Package Type | 0805 |
| Impedance at 100 MHz | 75Ω |
| Packaging | Tape & Reel |
| Impedance at 500 MHz | 300Ω |
| Current Rating | 300mA |
| Sub Type | High Speed |
| Mount Type | Surface |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | 125°C |
| Depth | 1.2mm |
| Standards/Approvals | IPC/JEDEC J-STD-020D |
| Maximum DC Resistance | 200mΩ |
| Length | 2mm |
| Height | 0.9mm |
| Material | Ferrite |
| Series | WE-CBF |
| Automotive Standard | AEC-Q200 |
Datasheet
Manufacturer
Wurth Elektronik
Weight
0.050 G
Pack Size
1 reel = 100 units
Base Unit of Measure
PCE
Shipping
2–3 days within Germany / 3–6 days within EU
