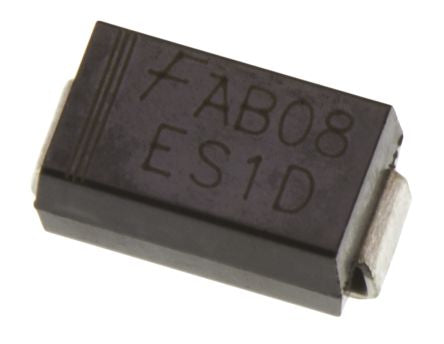

onsemi 200 V 1 A Diode Switching 2-Pin DO-214AC - pack size 7500 units
onsemi 200 V 1 A Diode Switching 2-Pin DO-214AC - pack size 7500 units
MPN: ES1D
RS-ID: SKU:124-1676
90000 in stock
Couldn't load pickup availability
Description
Product Type = Diode
Package Type = DO-214AC
Maximum Continuous Forward Current If = 1A
Peak Reverse Repetitive Voltage Vrrm = 200V
Diode Configuration = Single
Rectifier Type = Switching
Pin Count = 2
Peak Reverse Current Ir = 5μA
Peak Reverse Recovery Time trr = 15ns
Height = 2.2mm
Automotive Standard = No
Technical data
| Characteristic | Value |
|---|---|
| Mount Type | Surface |
| Product Type | Diode |
| Package Type | DO-214AC |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Series | ES1D |
| Rectifier Type | Switching |
| Pin Count | 2 |
| Peak Reverse Current Ir | 5μA |
| Minimum Operating Temperature | -50°C |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 920mV |
| Maximum Operating Temperature | 150°C |
| Peak Reverse Recovery Time trr | 15ns |
| Height | 2.2mm |
| Length | 4.75mm |
| Standards/Approvals | RoHS |
| Automotive Standard | No |
Datasheet
Manufacturer
onsemi
Weight
0.115 G
Pack Size
1 reel = 7500 units
Base Unit of Measure
PCE
Shipping
2–3 days within Germany / 3–6 days within EU
