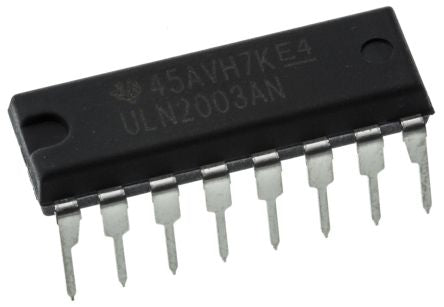

Texas Instruments 7 Darlington Transistor Array NPN, 500 mA 50 V, 16-Pin PDIP - pack size 25 units
Texas Instruments 7 Darlington Transistor Array NPN, 500 mA 50 V, 16-Pin PDIP - pack size 25 units
MPN: ULN2003AN
RS-ID: SKU:100-3837
850 in stock
Couldn't load pickup availability
Description
Product Type = Darlington Transistor Array
Maximum Continuous Collector Current Ic = 500mA
Maximum Collector Emitter Voltage Vceo = 50V
Package Type = PDIP
Mount Type = Through Hole
Pin Count = 16
Number of Elements per Chip = 7
Transistor Polarity = NPNV
Maximum Operating Temperature = 70°C
Length = 19.3mm
Maximum Collector Cut-off Current = 100μA
Automotive Standard = No
Technical data
| Characteristic | Value |
|---|---|
| Product Type | Darlington Transistor Array |
| Maximum Continuous Collector Current Ic | 500mA |
| Maximum Collector Emitter Voltage Vceo | 50V |
| Package Type | PDIP |
| Mount Type | Through Hole |
| Pin Count | 16 |
| Number of Elements per Chip | 7 |
| Transistor Polarity | NPN |
| Minimum Operating Temperature | -20°C |
| Maximum Emitter Base Voltage VEBO | 50V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.1V |
| Maximum Operating Temperature | 70°C |
| Series | ULN2003A |
| Length | 19.3mm |
| Height | 4.57mm |
| Standards/Approvals | No |
| Maximum Collector Cut-off Current | 100μA |
| Automotive Standard | No |
Manufacturer
Texas Instruments
Weight
2.160 G
Pack Size
1 tu = 25 units
Base Unit of Measure
PCE
Shipping
2–3 days within Germany / 3–6 days within EU
