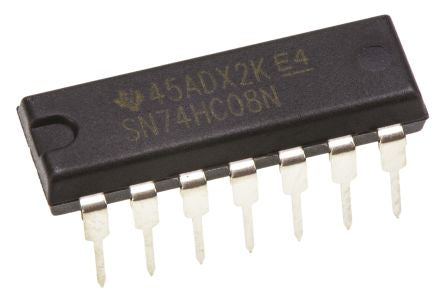

Texas Instruments, 4 2-Input AND Logic Gate, 14-Pin PDIP - pack size 25 units
Texas Instruments, 4 2-Input AND Logic Gate, 14-Pin PDIP - pack size 25 units
MPN: SN74HC08N
RS-ID: SKU:100-0760
425 in stock
Couldn't load pickup availability
Description
Logic Gates
Technical data
| Characteristic | Value |
|---|---|
| Product Type | Logic Gate |
| Logic Function | AND |
| Mount Type | Through Hole |
| Number of Elements | 4 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | PDIP |
| Pin Count | 14 |
| Logic Family | HC |
| Input Type | CMOS |
| Minimum Operating Temperature | -40°C |
| Maximum Propagation Delay Time @ CL | 24ns |
| Maximum High Level Output Current | -5.2mA |
| Maximum Operating Temperature | 85°C |
| Length | 19.3mm |
| Height | 4.57mm |
| Minimum Supply Voltage | 2V |
| Maximum Supply Voltage | 6V |
| Series | SN74 |
| Standards/Approvals | No |
| Maximum Low Level Output Current | 5.2mA |
| Automotive Standard | No |
| Output Type | Push Pull |
Manufacturer
Texas Instruments
Weight
2.000 G
Pack Size
1 tu = 25 units
Base Unit of Measure
PCE
Shipping
2–3 days within Germany / 3–6 days within EU
