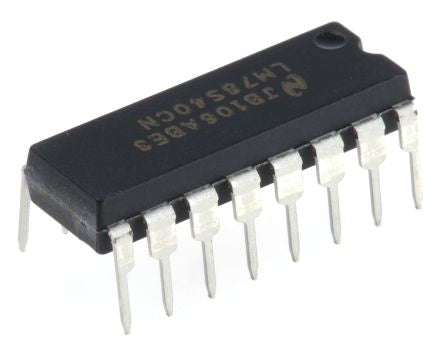

Texas Instruments 5 PWM Controller, 100 kHz 14V 16-Pin, MDIP - pack size 25 units
Texas Instruments 5 PWM Controller, 100 kHz 14V 16-Pin, MDIP - pack size 25 units
MPN: LM78S40CN/NOPB
RS-ID: SKU:100-0725
175 in stock
Couldn't load pickup availability
Description
Product Type = PWM ControllerkHz
Start-up Supply Current = 1.8mA
Supply Current = 1.8mA
Zero Power Detection = NoA
Mount Type = Through Hole
Minimum Supply Voltage = 2.7V
Pin Count = 16V
Maximum Duty Cycle = 88%
Maximum Operating Temperature = 70°C
Height = 3.3mm
Automotive Standard = No
Technical data
| Characteristic | Value |
|---|---|
| Maximum Switching Frequency | 100kHz |
| Product Type | PWM Controller |
| Start-up Supply Current | 1.8mA |
| Supply Current | 1.8mA |
| Output Current | 1.2A |
| Zero Power Detection | No |
| Mount Type | Through Hole |
| Minimum Supply Voltage | 2.7V |
| Package Type | MDIP |
| Maximum Supply Voltage | 14V |
| Topology | Buck |
| Pin Count | 16 |
| Maximum Duty Cycle | 88% |
| Minimum Operating Temperature | 0°C |
| PWM Controller Type | Voltage Mode |
| Maximum Operating Temperature | 70°C |
| Height | 3.3mm |
| Standards/Approvals | No |
| Series | LM |
| Length | 19.05mm |
| Automotive Standard | No |
Manufacturer
Texas Instruments
Weight
2.000 G
Pack Size
1 tu = 25 units
Base Unit of Measure
PCE
Shipping
2–3 days within Germany / 3–6 days within EU
