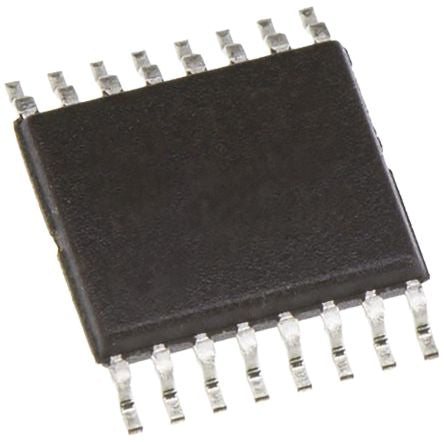

Renesas Electronics DG409DVZ Multiplexer, 2 CMOS Dual 4:1, Multiplexer, 16-Pin TSSOP - pack size 5 units
Renesas Electronics DG409DVZ Multiplexer, 2 CMOS Dual 4:1, Multiplexer, 16-Pin TSSOP - pack size 5 units
MPN: DG409DVZ
RS-ID: SKU:100-0670P
1385 in stock
Couldn't load pickup availability
Description
Pin Count = 16
Mounting Type = Surface Mount
Package Type = TSSOP
Dimensions = 5.1 x 4.5 x 0.95mm
Minimum Operating Temperature = -40 °C
Analogue Multiplexers, Intersil
Technical data
| Characteristic | Value |
|---|---|
| Logic Family | CMOS |
| Product Type | Multiplexer |
| Number of Elements per Chip | 2 |
| Pin Count | 16 |
| Output Type | CMOS/TTL |
| Mount Type | Surface |
| Configuration | Dual 4:1 |
| Package Type | TSSOP |
| Minimum Supply Voltage | 5V |
| Maximum Supply Voltage | 34V |
| Multiplexer/Demultiplexer | Multiplexer |
| Minimum Operating Temperature | -40°C |
| Maximum On State Resistance | 125Ω |
| Maximum Operating Temperature | 85°C |
| Series | DG409 |
| Height | 0.95mm |
| Standards/Approvals | No |
| Length | 5.1mm |
| Automotive Standard | No |
Datasheet
Manufacturer
Intersil
Weight
0.2 G
Pack Size
1 tu = 5 units
Base Unit of Measure
PCE
Shipping
2–3 days within Germany / 3–6 days within EU
